Diagnostic Trouble Code (DTC) Information

Diagnostic Trouble Code (DTC) Information







Condition
The control module can store one seat position set-up in memory position 2. If the control module detects that the contents of memory position 2 does not match a checksum then diagnostic trouble code (DTC) PSL/PSR-322 is set.

Possible source
- Incorrect procedure for memory storage.
- Defective wiring.
- Defective control.
- Defective control module.

Condition

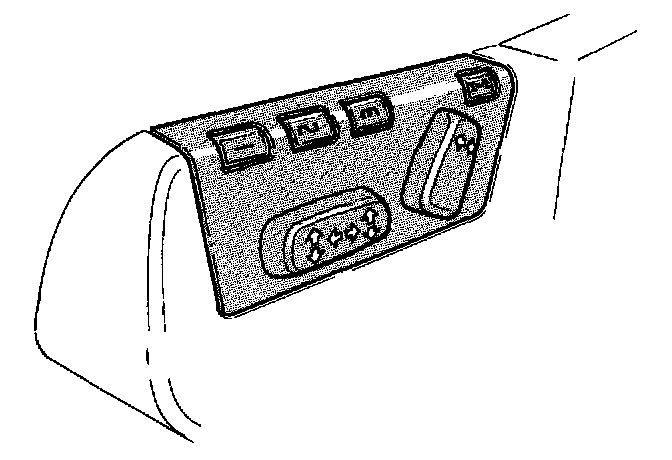

- Memory function 2 not working.
- This diagnostic trouble code (DTC) may occur without any fault symptom being apparent.
