Diagnostic Trouble Code (DTC) Information

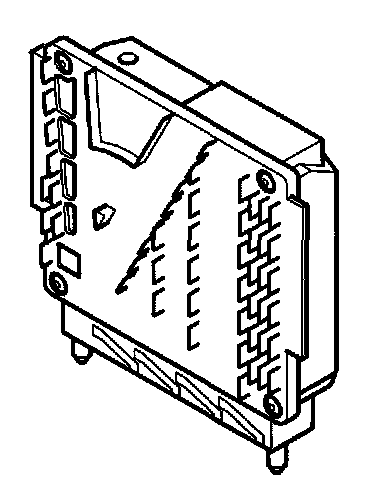

ECM-1000 CONTROL MODULE
DIAGNOSTIC TROUBLE CODE (DTC) INFORMATION




Condition
If the control module registers that a signal from the internal atmospheric pressure sensor is faulty, the control module interprets this as a fault and ECM-1000 is stored after 20 seconds.

Condition
The control module assumes 1013 hPa (14.7 psi) air pressure corresponding to sea level.

Possible source
Signal too high:
- defective control module

Signal too low:
- defective control module

Condition
- Malfunction indicator lamp (MIL) lit
