Power Locks: Locations

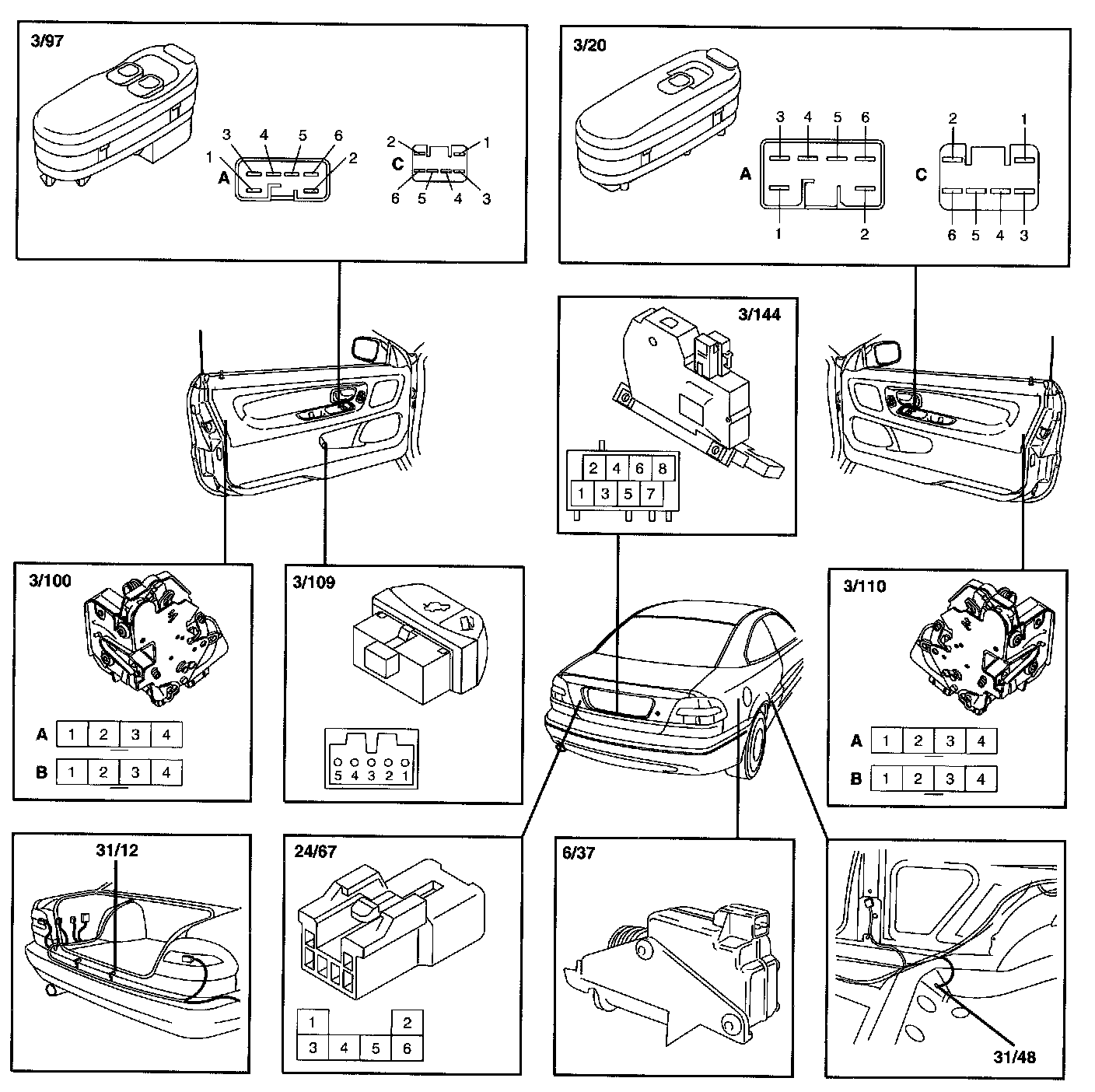

Central Locking Components C70 Coupe:
Central Locking Components C70 Coupe:

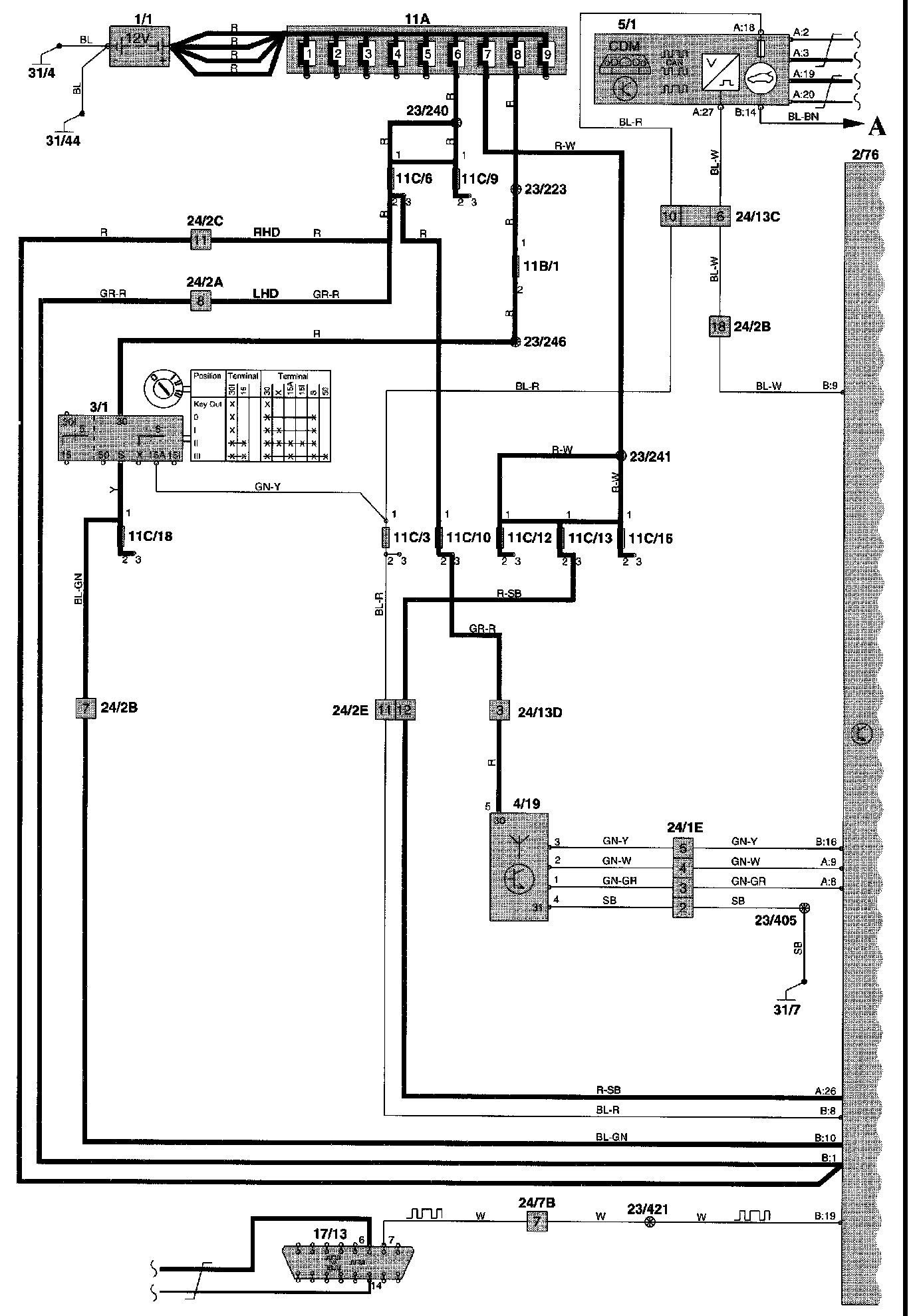

Central Locking Wiring Diagram C70 Coupe (1 Of 2):

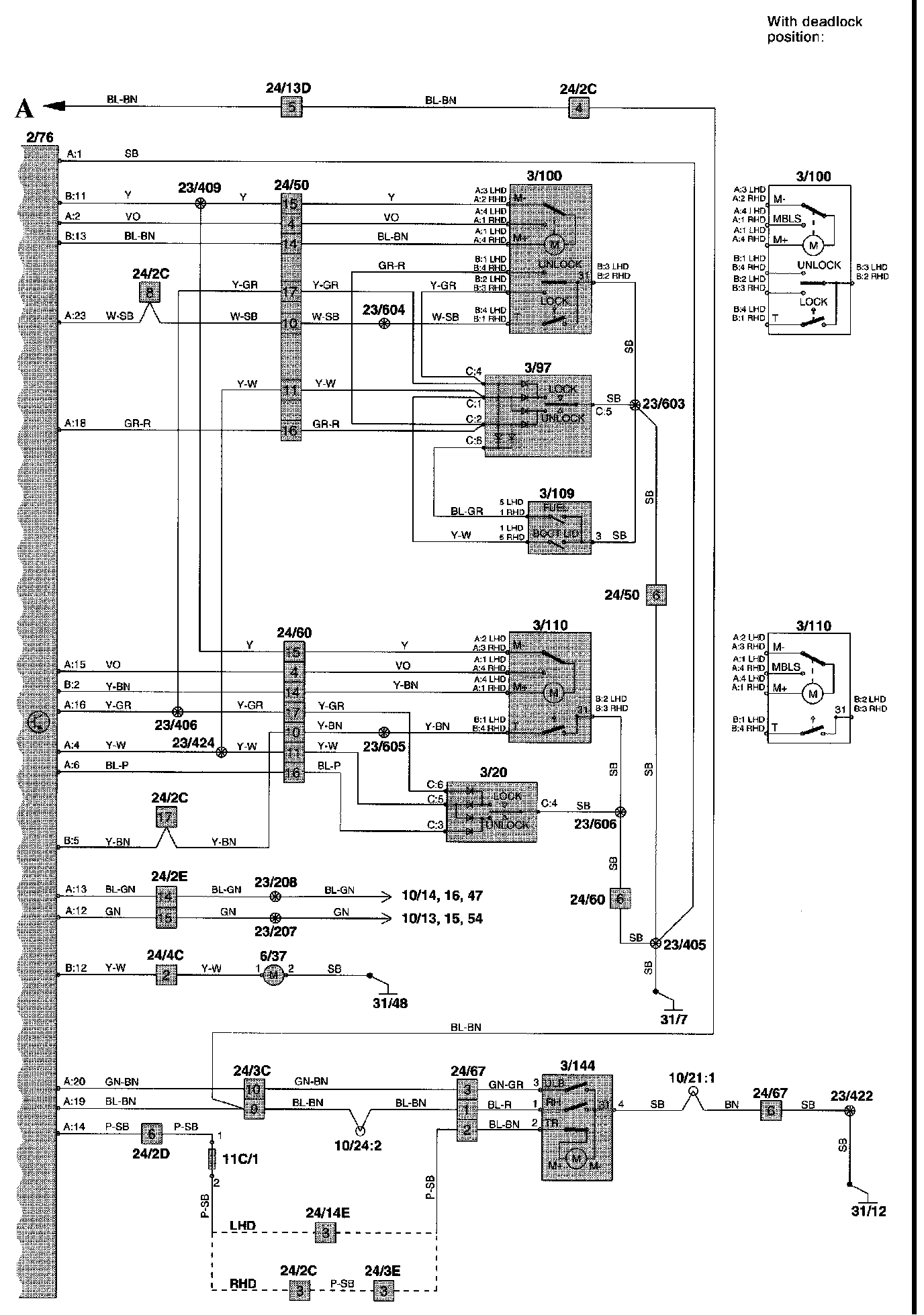

Central Locking Wiring Diagram C70 Coupe (2 Of 2):
Component ID's refer to "Vehicle : Diagrams : Diagram Information and Instructions". Diagram Information and Instructions
