Rear Door Panel: Service and Repair

Panels

Rear side panel

Rear seat
Remove rear seat according to Rear seats Rear Seats.

Panel





Remove:
- 2 clips at the rear edge.
- 1 clip by B-post.
- 2 clips at the front edge.
Lift panel up and out.

A, B, C/D panels

B-panel




Remove 2 seat belt screws.
Lift up B-panel.

Tightening torque
Tighten upper seat belt screw to 48 Nm (35.4 ft.lb) .

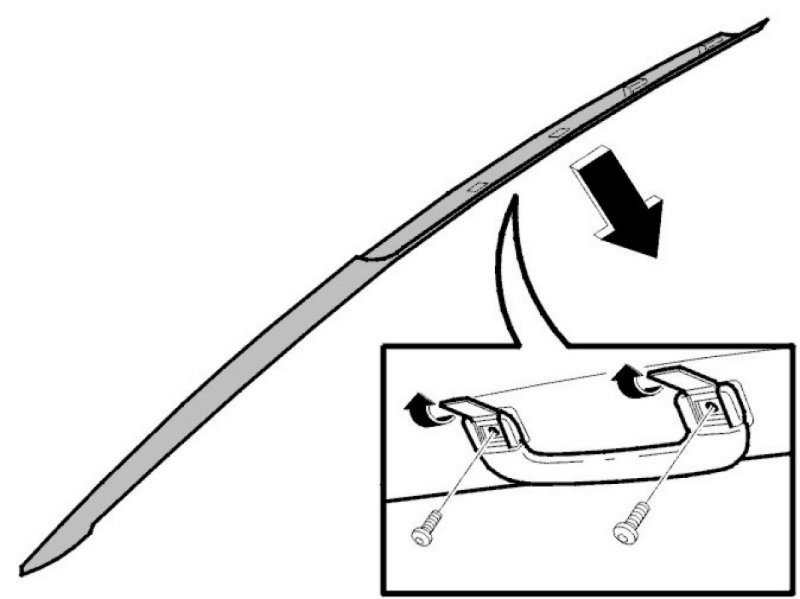

A-panel




Remove 2 grab handle screws.
Pull panel off 4 clips.

Caution! If the clips break they must be replaced.

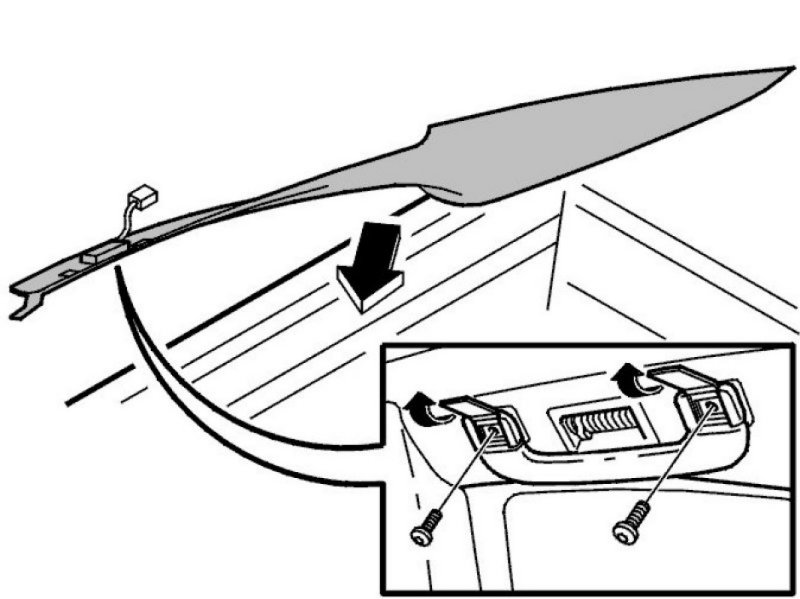

C/D-panel





Remove:
- 2 grab handle screws.
- 1 connector.
Pull panel off 3 clips.

Caution! If the clips break they must be replaced.
