Windshield Washer Spray Nozzle: Service and Repair

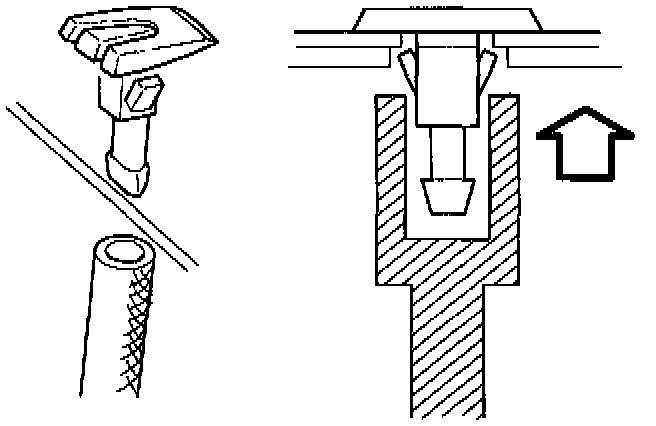

FH1 Removing:

Removal:

- Disconnect washer nozzle hose.
- Remove washer nozzle, press together hooks using a socket driver and press up the nozzle from below.

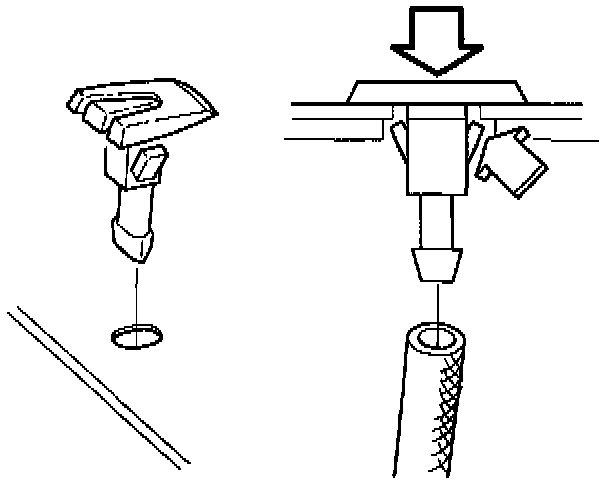

FH2 Installing:

Installation:

NOTE: The P/Ns for the right and left-hand sides are the same.

- Install washer nozzle, ensure that the hooks engage.
- Connect hose to washer nozzle. Check that the washer nozzle does not leak windshield washer fluid. If the washer nozzle leaks, check it. Testing and Inspection
