Windshield Washer Spray Nozzle: Adjustments

FH3 Adjusting Washer Nozzle:

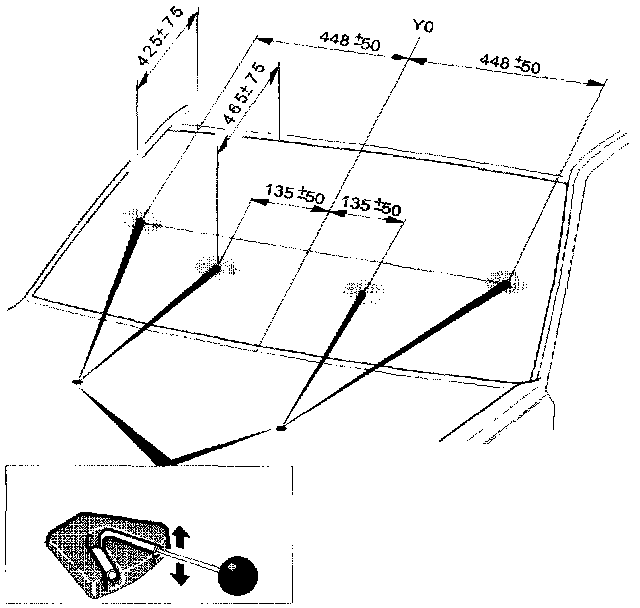

- Adjust washer jet pattern by moving the jet up and down, as shown. Adjust washer nozzle jets using a pin.
- The pattern of the water jets on the windshield is shown in the image.

NOTE: The dimensions in the image are given in mm (in).
