Fuel Rail: Service and Repair

Fuel line, lock

Removing lock

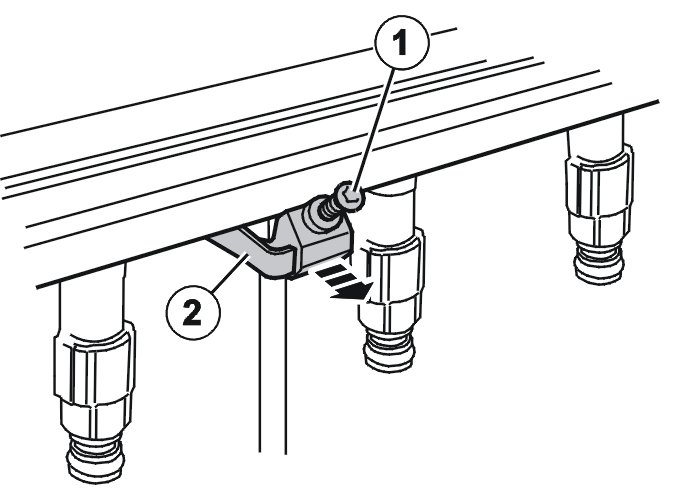

Unscrew the screw (1).
Bend out the secondary lock (2). Pull out the catch.
Remove the fuel rail.

Installing the lock





Note! Screw in the screw until it takes.

Install the fuel rail.
Press in the secondary lock (2).
Screw the screw (1) right in.
