Procedures

Replacement of blower fan motor







TTTL1 Removing blower fan motor
- Ignition off.
- Remove glove compartment
- Remove soundproofing panels
- Remove knee bolster/member if installed.
- Disconnect the blower fan connector.

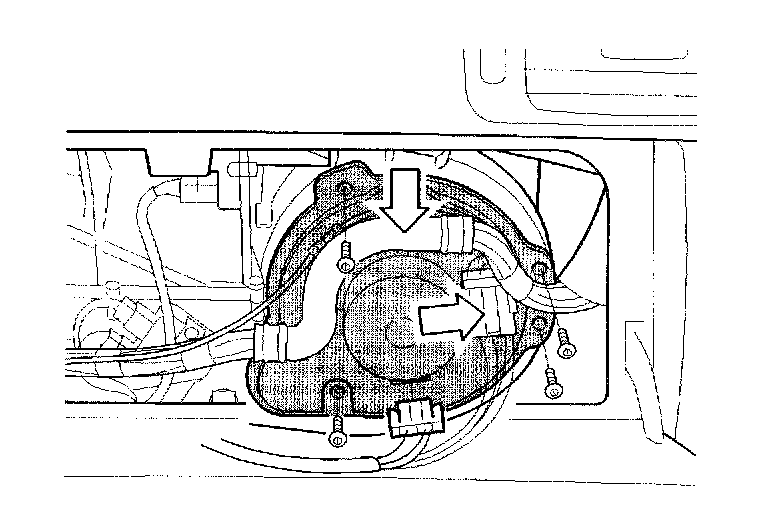

- Expose the blower fan motor (detach cable conduit and heater unit connector from the blower fan motor).
- Remove blower fan motor.


TTTL2 Installing blower fan motor
- In reverse order.

TTTL3 Finishing
- Check that the blower fan is working.
- Check that no diagnostic trouble code (DTC) was stored during repairs.
