Procedures

Replacing blower fan resistor (MCC)

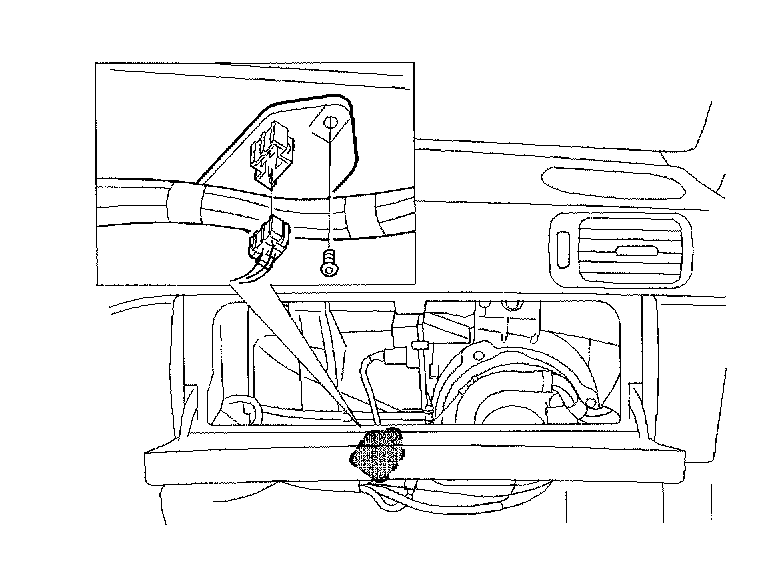

TTTG1 Removing blower fan resistor (MCC)
- Ignition off.
- Remove glove compartment
- Remove soundproofing panels
- Disconnect the blower fan resistor connector.
- Remove blower fan resistor.


TTTG2 Installing blower fan resistor (MCC)
In reverse order.

TTTG3 Finishing
- Check that the blower fan is working.
