Rear Seal

Rear seal

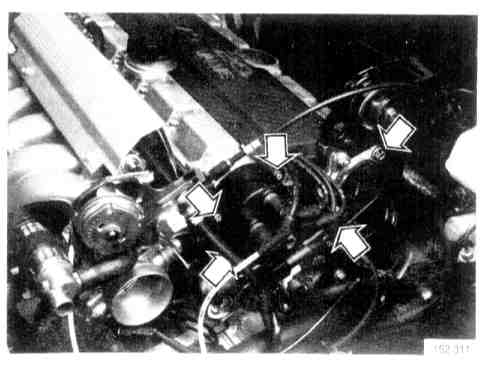

Remove






- Air Cleaner (ACL) housing with hoses and connectors
- distributor cover, rotor, holder
- Camshaft Position (CMP) sensor housing and damper

Note! Connectors and hoses for solenoid valve on the Air Cleaner Housing (ACL).

Remove and install new seal






Carefully pry out seal with a screwdriver.
Clean seal seats and check for shaft end grooving.
Grease seal.

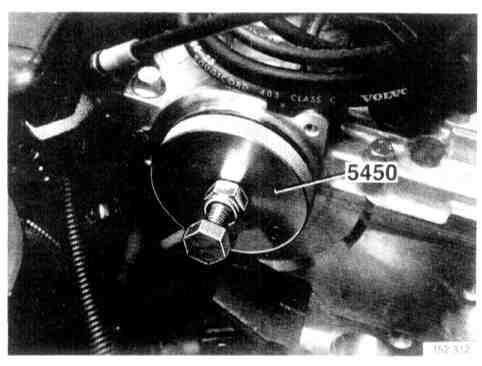

Install the new seal by pressing in with a drift 999 5450.

Note! The seal is usually positioned flush with the inner chamfer edge. If there are grooves on the shaft journal the seal can be pressed in a further 2 mm, by reversing the sleeve.

Install






- Camshaft Position (CMP) sensor housing with damper
- rotor and distributor cover
- Air Cleaner (ACL) housing with hoses and connectors

Test function

Test run engine.
