Motor and Potentiometer In Backrest, Replace

Replacing the motor and potentiometer in the backrest

Removing:

Make a note of radio code if anti-theft coded radio is installed.

Remove:






- battery negative lead (disconnect).
- seat from car. See "Replacing Seat Assembly."
- upholstery. See "Backrest Uphostery Replacement."
- protective pad.

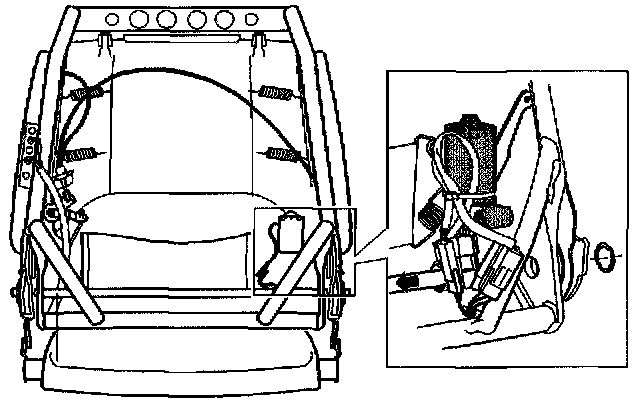

- screw securing motor.






- Remove locking washer from drive shaft.
- Pull out the drive shaft as far as the motor with the p0tentiometer can be slackened oft.
- Disconnect motor and potentiometer connector. Remove potentiometer from motor using a screwdriver.

NOTE: Check the position of potentiometer on motor before removing.

- Replace motor/potentiometer.
- Join motor and potentiometer.
- Assemble in reverse order.
