Tension Frame End Position Stop

Before starting work, see CHA. Preparations Before Work. Procedures





- Adjust first as described in Tension Frame Microswitch. Tension Frame Microswitch
- Loosen inner fabric side part around C-pillar, as described in CHG2.

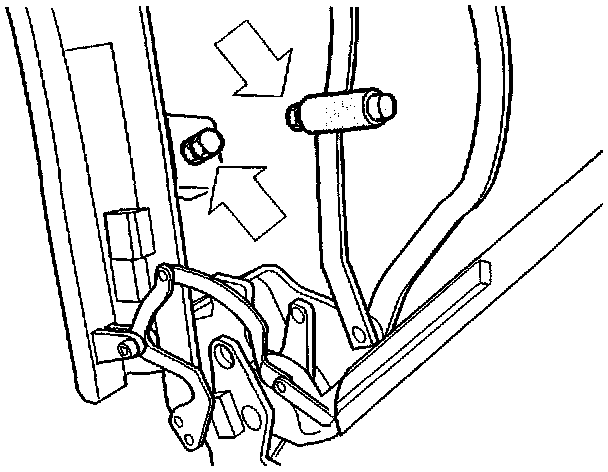

- Adjust end position stop to tension frame so there is a distance of 1 mm (0.04") between equipment surfaces.
