Rear

Removing:





Ignition off.

Remove:
- nut, unscrew a few turns to protect the thread on the wiper mechanism spindle.

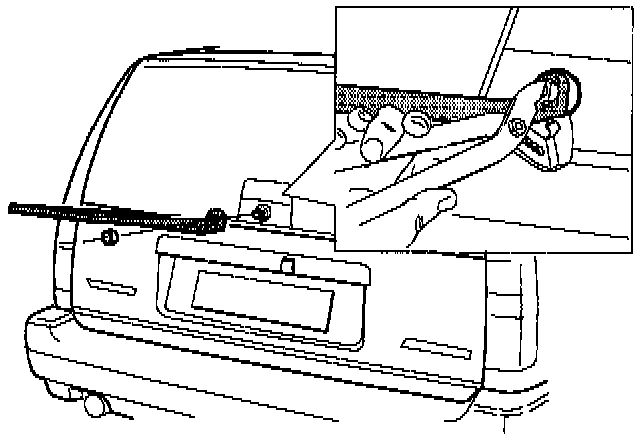

- wiper arm from wiper arm mechanism by supporting a pipe wrench on the nut and pressing off the arm.

Remove wiper arm.

Installing:





Install:
- wiper arm.
- nut loosely.

Adjust so that the wiper arm is parallel with the lower edge of the rear windshield. Tighten nut to 16 Nm. (11.8 ft.lbs)
