Replacing Right-Hand Side Headlamp Wiper Motor (W/O A/C)

NOTE: Reinstall the special suppression kit if installed.

Removing:

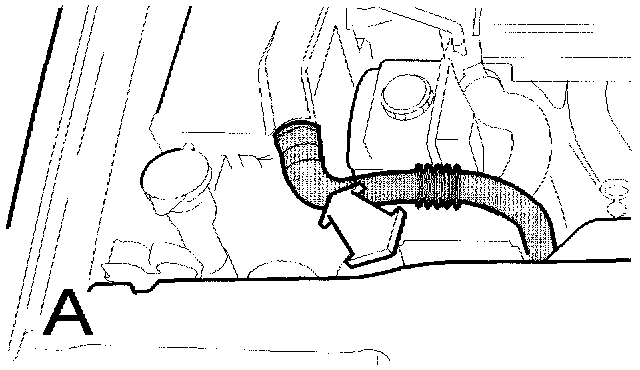

CD1 Removing Air Duct and Filler Pipe:





- Ignition off.

Remove:
- front control module box (engine compartment) air duct.
- washer reservoir filler pipe.

CD2 Removing Wiper Arm and Wiper Motor:





Remove:
- headlamp wiper arm and washer hose.
- headlamp wiper motor screws.
- headlamp wiper motor, pull it out from inside the engine compartment.

Installing:

CD3 Installing Wiper Motor:





Install:
- headlamp wiper motor.
- headlamp wiper motor screws.

CD4 Installing Filler Pipe, Air Duct and Wiper Arm:





Install:
- washer reservoir filler pipe.
- front control module box (engine compartment) air duct.
- washer hose and headlamp wiper arm.

NOTE: Ensure that no cables or hoses are trapped.

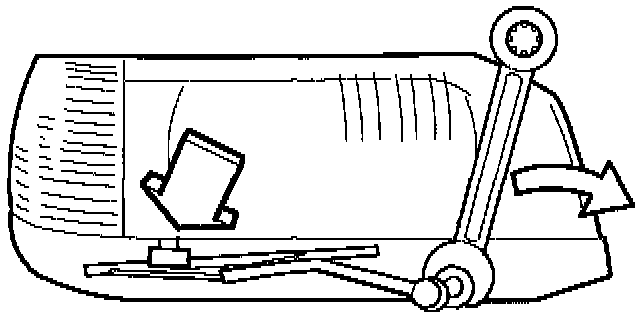

CD5 Adjusting Wiper Arm:





NOTE: Before the wiper arms are installed, check that the wiper motor has parked and that the washer hose is not trapped.

- Install nut loosely.
- Adjust headlamp wiper so that the wiper blade is just under the stop. Tighten to 4 Nm (2.9 ft.lbs).
- Then lift wiper arm above stop.

Test headlamp wiper function.
