Windshield and Headlamp Wiper/Washer

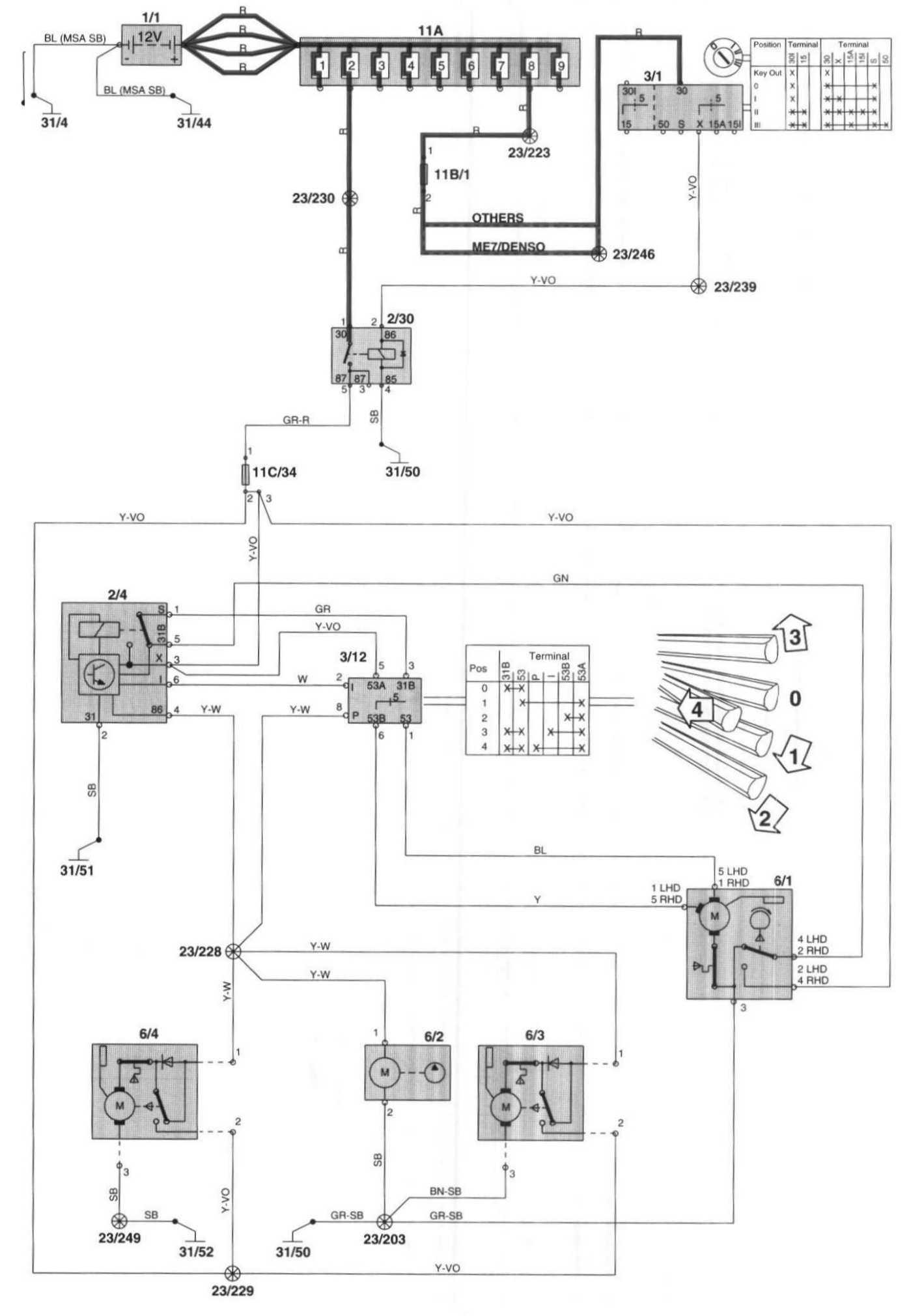

Washers Windshield And Headlamp - Wiring Diagram:

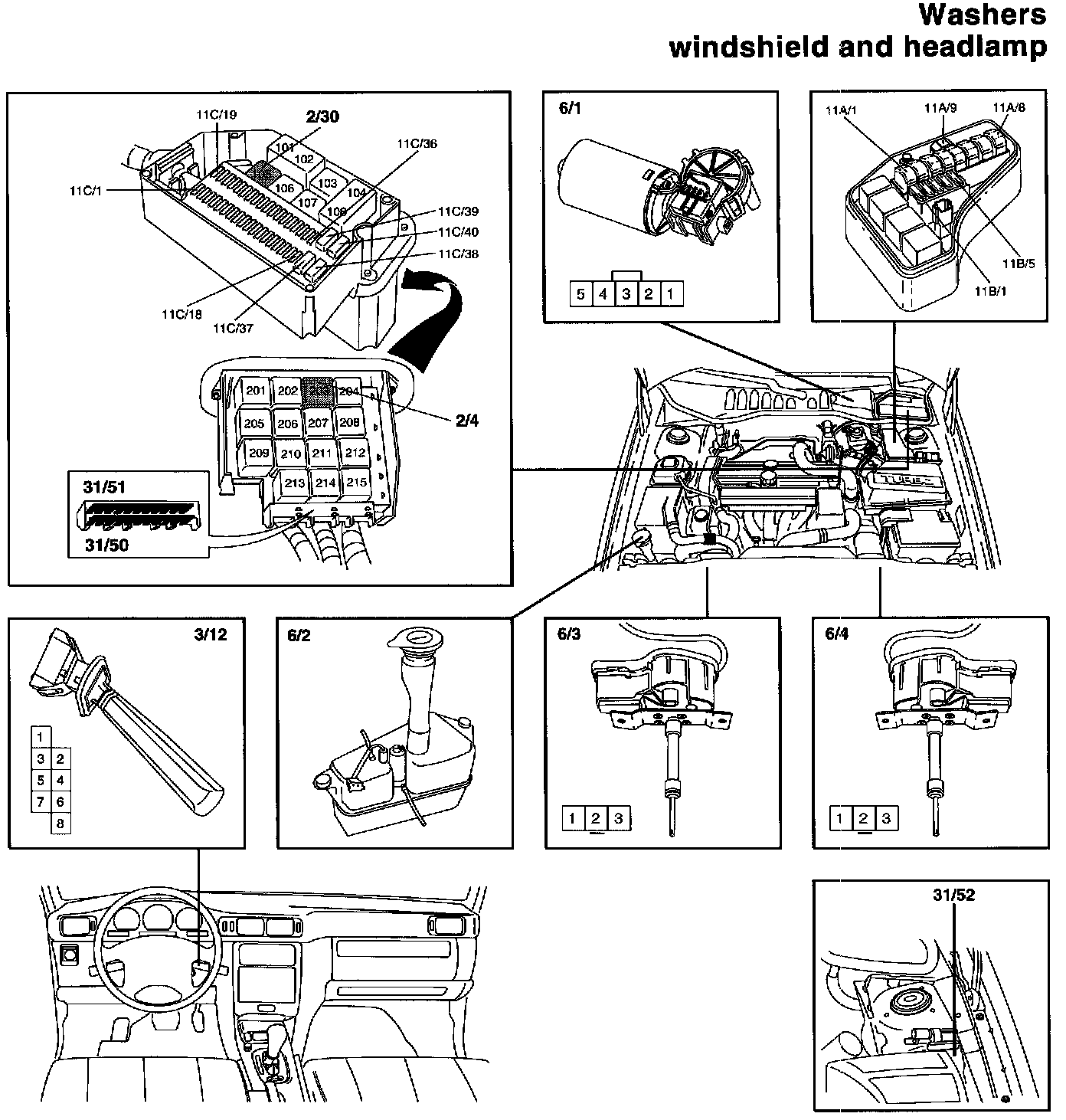

Washers Windshield And Headlamp - Component Location:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
