Control Module Identification

Control module identification

Question

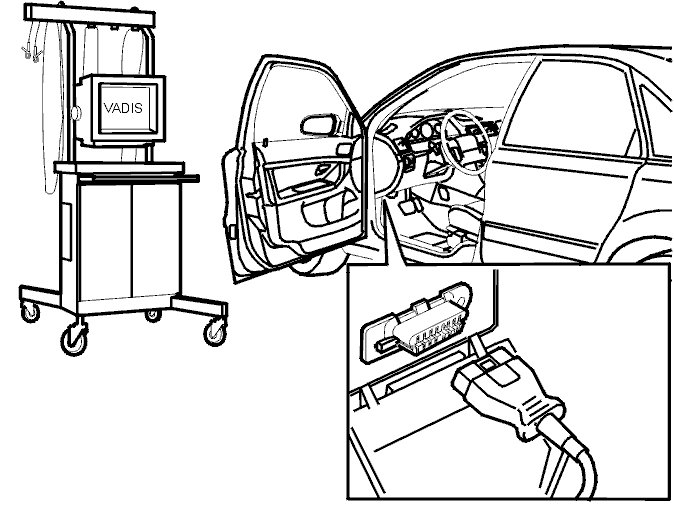

Connecting the Volvo Communication Tool 2000 (VCT 2000)

Connecting the Volvo Communication Tool 2000 (VCT 2000)
In order to be able communicate with the car control modules, the VCT 2000 must be connected to both the VIDA PC and the car data link connector (DLC).
For further information about connection see Connecting VCT2000 Connecting VCT2000.






Continue - DONE

------------------------

DONE - Identification of hardware part number and serial number

-------------------------------------------------

Identification of hardware part number and serial number




- Ignition on.
In order to request the correct software, the hardware part number and serial number of the control modules have to be identified.
Select the symbol of VCT 2000 to read out the numbers.






0 - Resetting vehicle

Numeric Result -32000 - Communication failure

Numeric Result -32008 - Communication failure

Numeric Result -33000 - Communication failure

Numeric Result 24577 - Communication failure

Numeric Result 25456 - Communication failure

Numeric Result 25419 - Communication failure

Numeric Result 25468 - Communication failure

Numeric Result -200000 - Communication failure

Numeric Result -200004 - Communication failure

-------------------------------------------------





Communication failure
Communication between VIDA PC and VCT 2000 has failed for one of the following reasons:
- Ignition is OFF.
- The VST/VCT 2000 switch is not in position VCT 2000.
- VCT 2000 is not connected to the diagnostic connector.
- VCT 2000 is not connected to VIDA PC/selector switch.
- Communication problem in VIDA application and/or vehicle.
- Too low battery voltage.

Ensure that:
- Ignition is ON and selector switch is in position VCT 2000.
- VCT 2000 is properly connected to diagnostic connector inside vehicle and VIDA PC/selector switch.
- VCT 2000 and associated cables are functional.
- Battery voltage exceeds 12 V.





Do you want to make another attempt to establish communication?

YES - Identification of hardware part number and serial number

NO - Exit test

-------------------------------------------------





Communication failure
Communication between VCT 2000 and the vehicle has failed for one of the following reasons:
- Too low battery voltage.
- One of the control modules is not responding.
- Ignition is off.
Ensure that:
Battery voltage exceeds 12 V.
Ignition is turned on.
If battery voltage is correct, perform fault-tracing to find the faulty control module.

Do you want to make another try to establish communication?

YES - Identification of hardware part number and serial number

NO - Exit test

-------------------------------------------------

Resetting vehicle




A reset of the vehicle is performed.
Please wait!

Numeric Result 0 - DONE

Numeric Result -32000 - Communication failure

Numeric Result -32008 - Communication failure

Numeric Result -33000 - Communication failure

Numeric Result 24577 - Communication failure

Numeric Result 25419 - Communication failure

Numeric Result 25468 - Communication failure

Numeric Result 25456 - Communication failure

Numeric Result -200000 - Communication failure

Numeric Result -200004 - Communication failure

-------------------------------------------------
