Boot Gear Selector Lever, Replacing

Boot, gear selector, replacing

Removal

Removing the gear selector knob
Remove the gear selector knob (standard) with lock function. See Gear selector knob, replacing Gear Selector Knob, Replacing.
or
Remove the gear selector knob (Geartronic) with lock function. See Gear selector knob, Geartronic, replacement Gear Selector Knob, Geartronic, Replacement.

Removing the panel

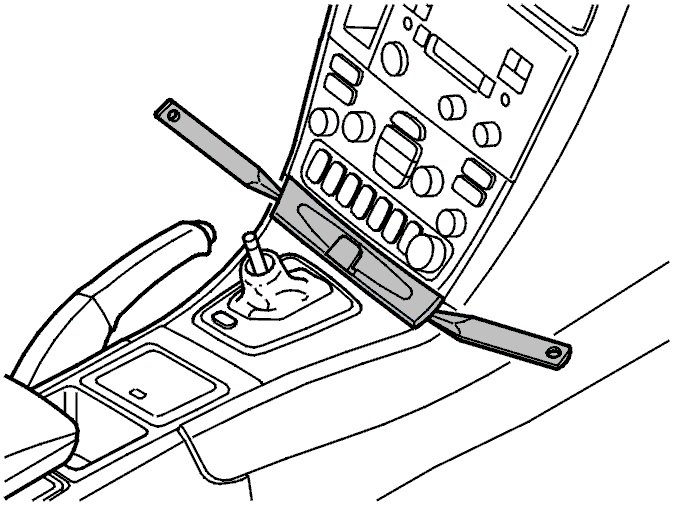

Remove the panel (the pen holder) between the dashboard center console and the center console.
Pry out the panel at both ends. Use a weatherstrip tool.
Pull the panel straight out.

Removing the top panel

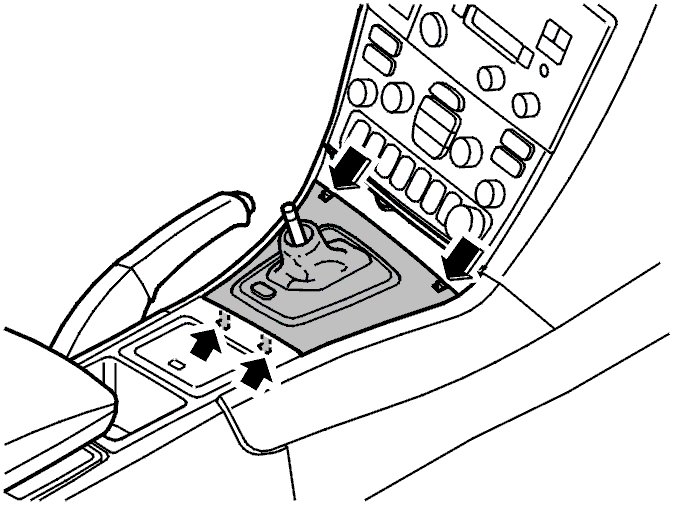

Press in the catches. Angle up the panel at the front edge.
Lift the panel out of the rear mountings.

Removing the boot from the top panel




Press out the 4 catches from the top panel. Remove the boot.

Installation

Installing a new boot

Install the new boot
Press the catches for the boot into place in the top panel.

Installing the top panel




Angle the panel downwards. Press the top panel into place in the center console.
Install the panel (the pen holder) between the center console and the dashboard.

Installing the gear selector knob
Install the gear selector knob (standard) with lock function. See Gear selector knob, replacing Gear Selector Knob, Replacing.
or
Install the gear selector knob (Geartronic) with lock function. See Gear selector knob, Geartronic, replacement Gear Selector Knob, Geartronic, Replacement.
