AW 50-42

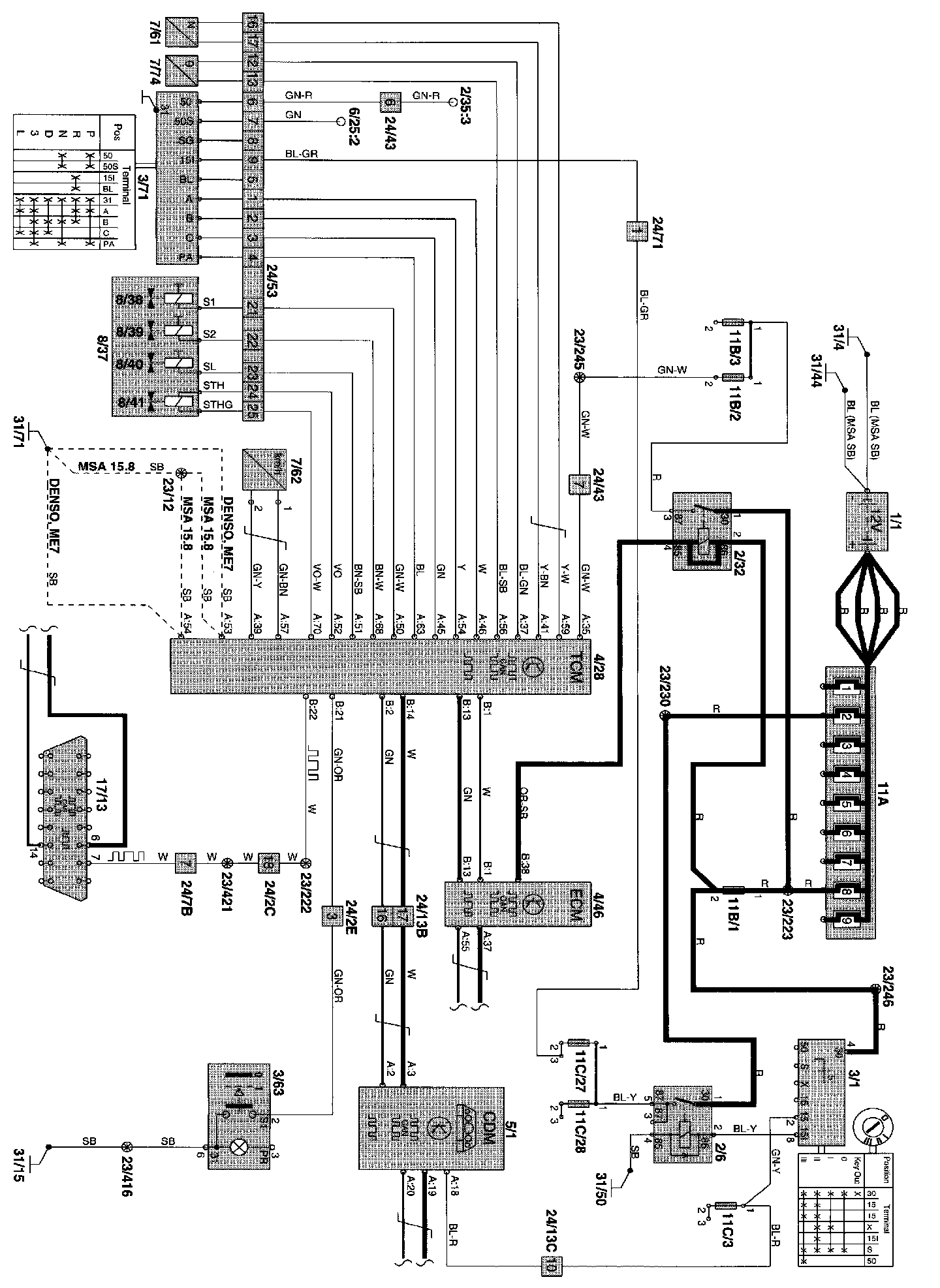

AW 50-42 Denso, ME7 - Component Location:





To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
