Tilt Wheel Handle: Service and Repair

Lever steering wheel adjustment, replacing

Removal

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparations
- Remove the steering column. See Replacing the steering column / steering shaft / seal / bearing / lower steering shaft joint Replacing the Steering Column / Steering Shaft / Seal / Bearing / Lower Steering Shaft Joint.

Removing the lever for steering wheel adjustment




- Cut off the Oetiker clamp

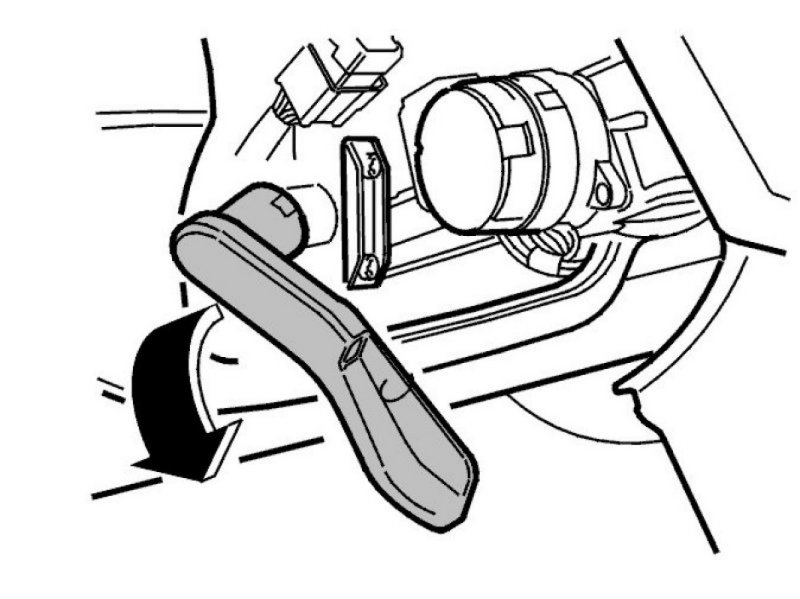

- Remove the lever by pulling it straight out.

Installation

Installing the lever for steering wheel adjustment

Install:
- the lever
- the Oetiker clamp
- the steering column. See Replacing the steering column / steering shaft / seal / bearing / lower steering shaft joint Replacing the Steering Column / Steering Shaft / Seal / Bearing / Lower Steering Shaft Joint.
