Washer Fluid Level Switch: Service and Repair

FE1 Removing:

Removal:

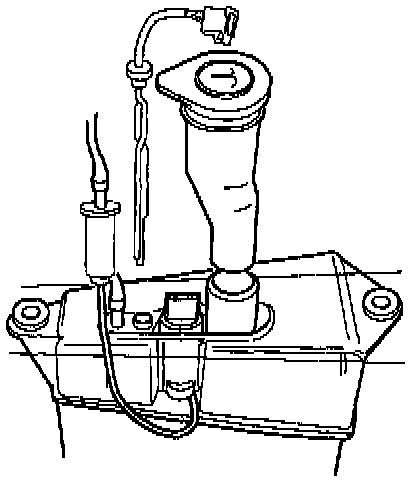

- Remove washer reservoir filler pipe.
- Pull up level sensor. (Located at the end of the cable.)
- Disconnect connector.

FE2 Installing:





- Connect connector to level sensor.
- Install sensor, press carefully into place.
- Reinstall washer reservoir filler pipe. Fill washer reservoir with water and check that the level sensor and filler pipe are correctly connected to the washer reservoir.
