Replacing Steering Column Cover

Replacing steering column cover

Removal

Preparations

- Remove the ignition key.
- Lower and pull the steering wheel out as far as possible.

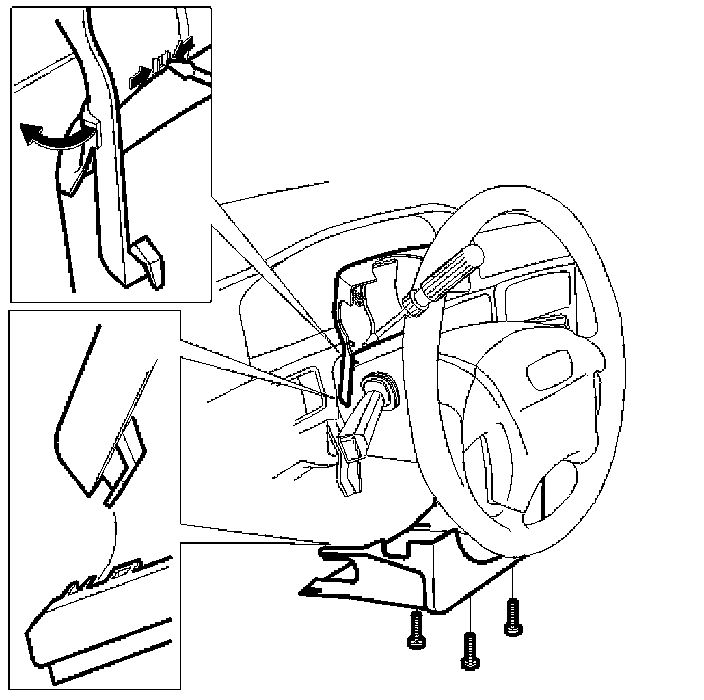

Removing steering column cover






- Undo the screws.
- Pull the lower cover loose and remove it.
- Fold up the upper cover.
- Remove the mounting for the apron molding by beginning unhooking from the side.

Installation

- Locate the lower cover. Check that the seals for the stalks are correctly positioned.
- Position the upper cover. Press the apron molding into place. Begin pressing from the center.
- Place the upper cover on the lower cover guides. Press the lower cover into place. Check that the seals for the stalks are correctly positioned.
- Install the screws.
- Everything else is installed in reverse order.
