Procedures

TTTE1 Removing outside temperature sensor (ECC)
- Ignition off.
- Remove glove compartment
- Remove soundproofing panels

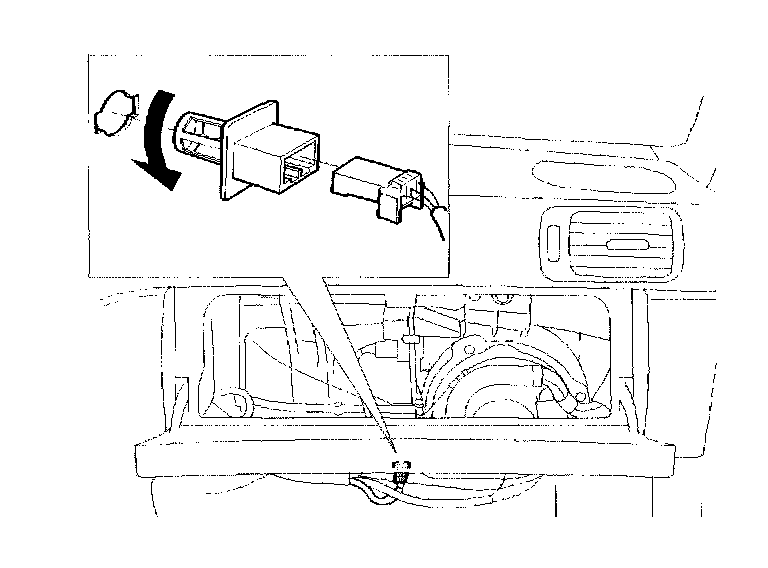

- Detach outer temperature sensor by turning it counter-clockwise and then pulling it out.
- Disconnect the sensor connector.


TTTE2 Installing outside temperature sensor (ECC)
- In reverse order.


TTTE3 Finishing
- Check that temperature sensor is operating by reading oft the outer temperature.
- Check no diagnostic trouble code (DTC) was stored during fault-tracing.
