Rear

Rear wheel sensor, with integrated wiring, replacement
Rear wheel sensor, with integrated cabling, replacement
Special tools: 115 8147
Preparations





- Ignition off.
- Remove wheel.

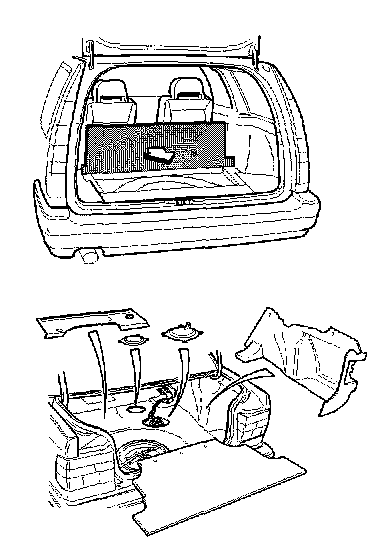

4-door cars:
- Fold RH rear seat forwards.
- Remove luggage compartment mat.
- Remove fuel pump and level sensor covers.

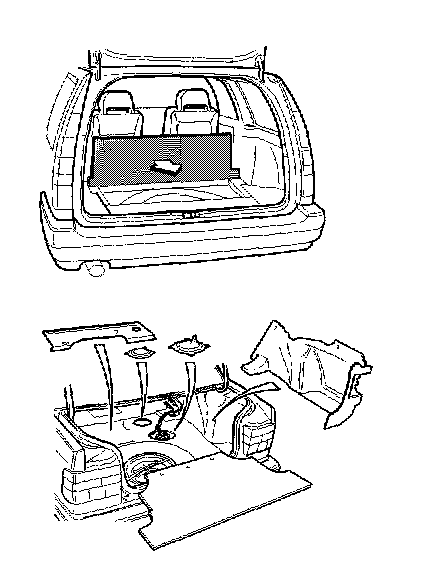

5-door cars:
- Fold up front floor panel and bend mat back.
- Remove fuel pump and level sensor covers.

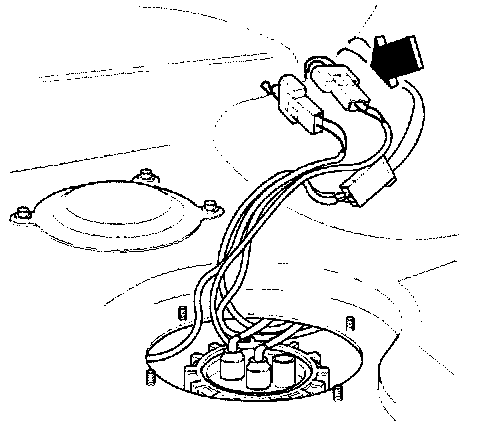

Removing wheel sensor connector





- Undo connector 24/19 to wheel sensors and remove leads from opening.
- Pull wheel sensor leads through from underneath. Check that connector comes too.

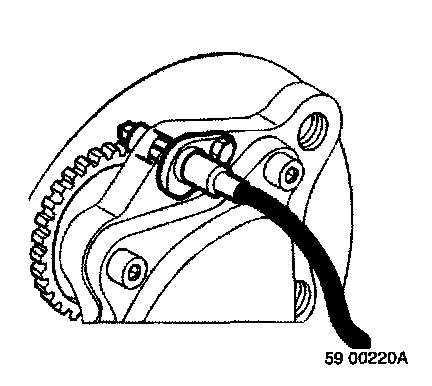

Removing wheel sensors





Note: Clean around sensor carefully before removing it.

- Remove sensor mounting bolt and extract sensor.
- Remove wheel sensor leads.
- Remove sensor.

Installing wheel sensors





- Clean sensor seat free of dirt and rust so sensor ends up in right position relative to pulse wheel.
- Brush any dirt off of pulse wheel. Use a soft brush.
- Install sensor leads and sensor and tighten bolt to 10 Nm (8 ft. lbs.).

Installing wheel sensor connector





- Run a lead down through hole for level sensor and fuel pump to rear axle.
- Attach new connector to lead.

Note: Protect connector from dirt and moisture.

- Pull connector up alongside fuel hoses to the other connector.
- Connect connector to wheel sensors. Install leads to opening.

Finishing





- Replace covers on fuel pump and level sensor. Check that seals are intact.
- Lay mats back.

Operational checks





- Read off any DTCs posted in control module and erase them.
- Quit DIM by switching off ignition.

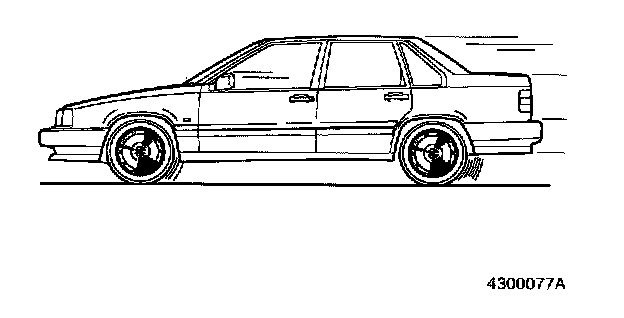

- Test-drive car, check that brakes are working and that

ABS-warning indicator goes out.
- Read off DTCs and check that code 1-1-1 appears.
- Quit DIM by switching off ignition.
