Rear Lock Arm Microswitch

Before starting work, see CHA. Preparations Before Work. Procedures

CHM4 Removal:





- Move hood to the position shown in the image.
- Ignition off.
- Make a note of any radio code.
- Disconnect the battery negative lead.

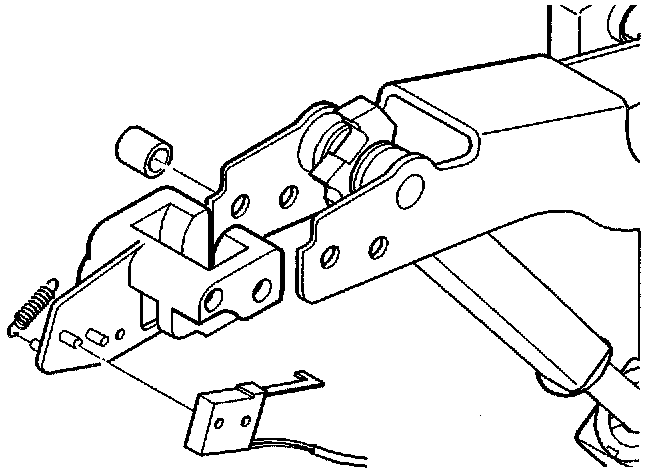

- Remove connector from microswitch.
- Remove microswitch from front lock tension link.
- Remove 2 cable ties.
- Remove microswitch.

CHM5 Installation:
Install in reverse order using new cable ties when installing components.
