Rear Seat Belts

Rear seat belts

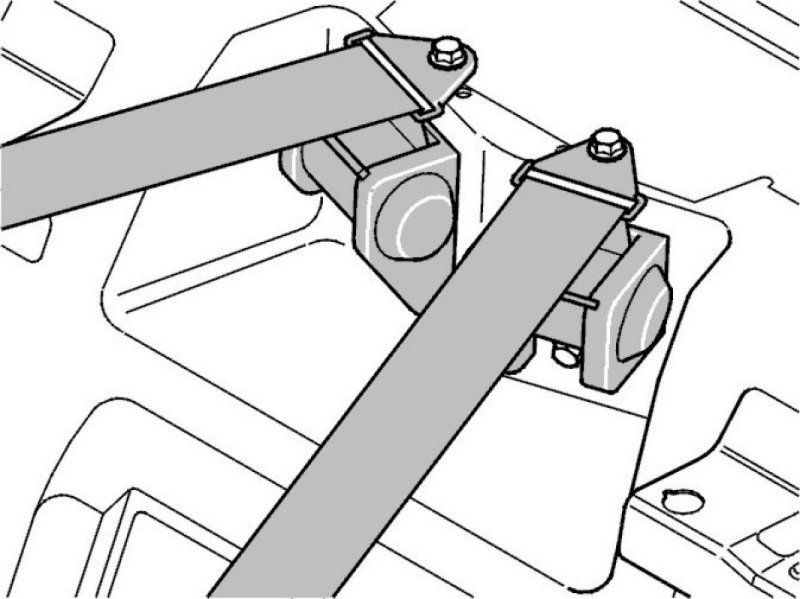

End mountings





Remove:
- the rear seat according to Rear seats Rear Seats.
- the 2 screws for the seat belt.

Installation
Tighten the screws for the belt to 48 Nm (35 lb.ft) .

Seat belt (inertia) reel





Remove:
- the parcel shelf according to Parcel shelf Service and Repair.
- the 4 screws for the seat belt reel.

Installation
Tighten the upper screws for the belt to 48 Nm (35 lb.ft) .
See the instructions for the sound system when installing the parcel shelf. See Parcel shelf Service and Repair.

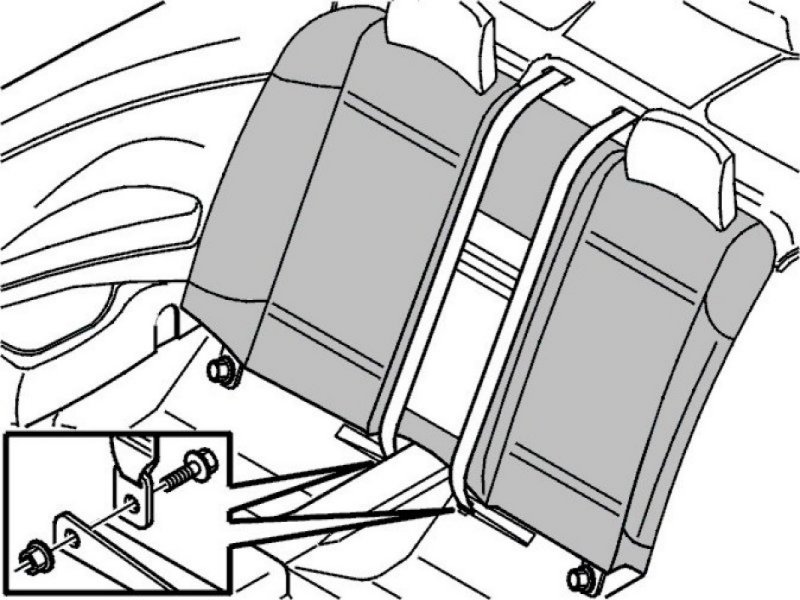

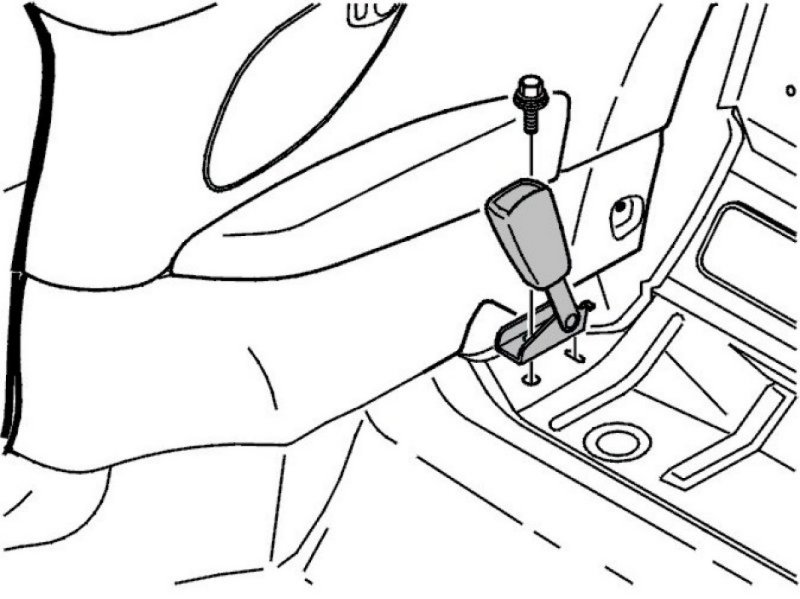

Rear seat belt buckle





Remove:
- the rear seat according to Rear seats Rear Seats.
- 1 screws per seat belt buckle.

Installation
Tighten the screws for the seat belt buckle to 48 Nm (35 lb.ft) .
