Checking the Wiring - II

Checking The Wiring

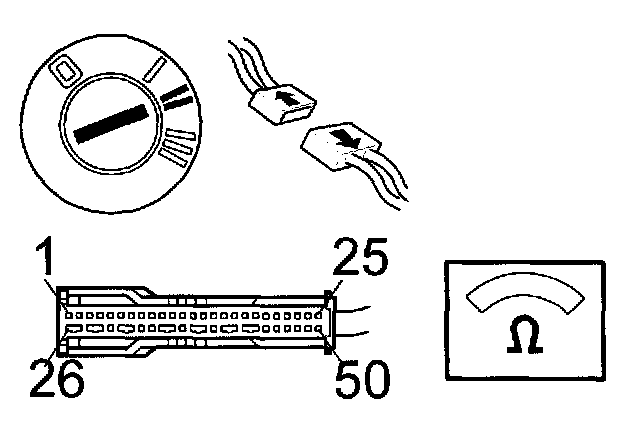

- Ignition off.
- Disconnect the control unit connector.
- Ignition on.

Check the wire between control unit connector #34 and relay 212 (2/5) #6 for an open circuit, as described in Checking wiring and terminals - Permanent faults.

Check the ground wire for relay 212 (2/5) #2 for an open circuit, as described in Checking wiring and terminals - Permanent faults.

Checking Wiring and Terminals - Permanent Faults

Do the necessary corrective action.

Additional information
- To access relay 212 (2/5), see Replacing relay in passenger compartment central electrical unit.

After performing this procedure, Verification
