Diagnostic Strategies
Diagnostic SymbolsFigures and symbols are used instead of, or to supplement, text in fault-tracing. This is to facilitate fault-tracing and make the manual easier to read. In many cases two or three symbols are used together to form a figure.

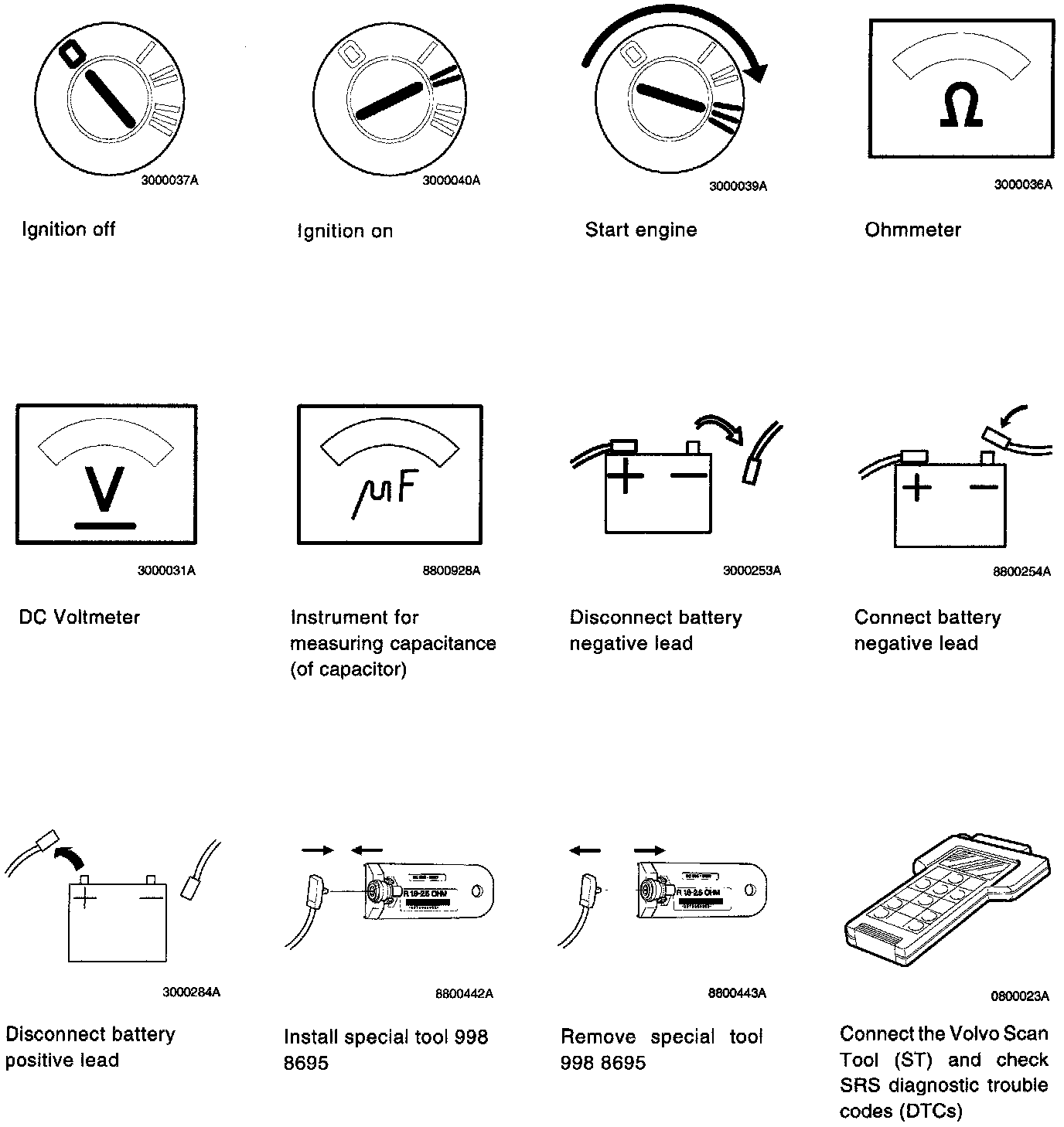

Examples of commonly occurring pictures and symbols are shown below:
