Checking the Central Locking, Unlocking
Checking the central locking, unlocking
Checking function
Note! Certain cars with VGLA are not preprogrammed with this unlocking function. In such cases this test is not irrelevant.
- Ignition on.
Lock the car with the inner central locking switch.
Activate central locking unlocking by clicking the VCT 2000 symbol to simulate a crash.
Does the unlocking function?
Yes - Verification
No - Checking the connector for the SRS control module
-------------------------------------------------
Checking the connector for the SRS control module
- Ignition off.

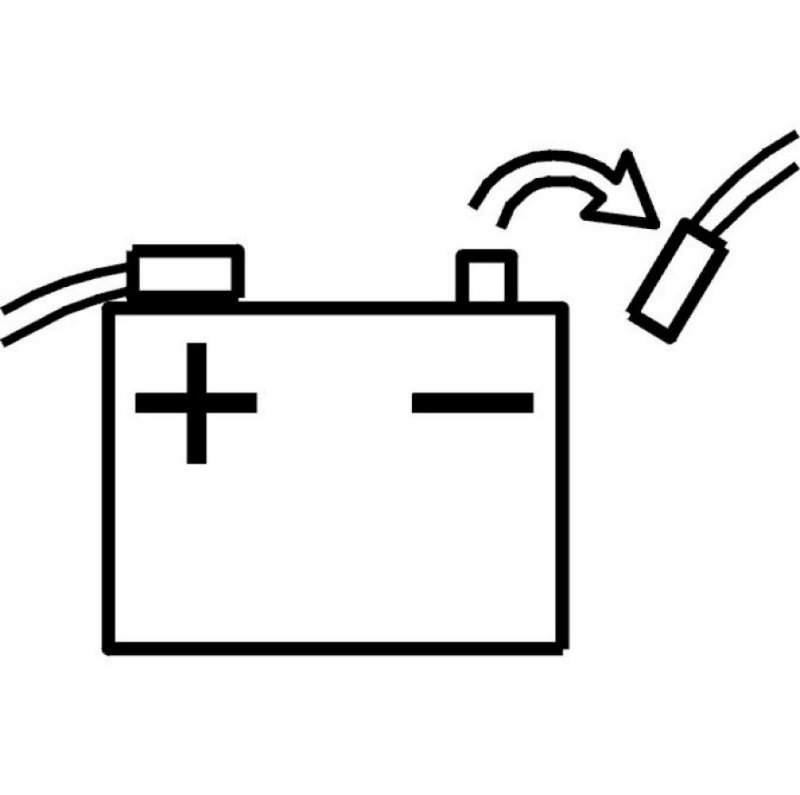

- Disconnect the battery negative lead.

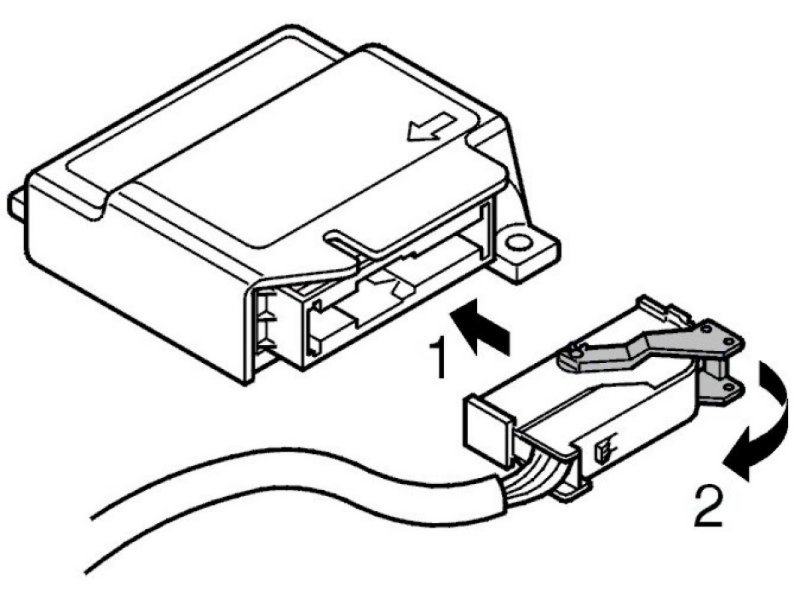

- Expose and disconnect the connector from the SRS control module according to SRS control module Service and Repair.
Caution! Avoid touching the control module terminal pins. There is a risk of static discharge which may damage the control module.
- Check the cable terminals in the female connector and the SRS control module connector terminals.
Note! The cable terminals must not be damaged or pressed back.
- Install and disconnect the SRS control module connector. Check that the connector locks into the control module.
1. The female and male connector halves are OK.
2. The male terminal on the control module connector is defective.
3. The female terminal on the connector is defective.
Select one of the above options.
1 - Checking the voltage in the cable
2 - Replacing the component
3 - Replacing the component
-------------------------------------------------
Replacing the component
- Replace the SRS control module according to SRS control module Service and Repair.
Continue - Verification
-------------------------------------------------
Replacing the component
Check the wiring and repair or replace the SRS cable harness.
Continue - Verification
-------------------------------------------------
Checking the voltage in the cable
- Ignition on.

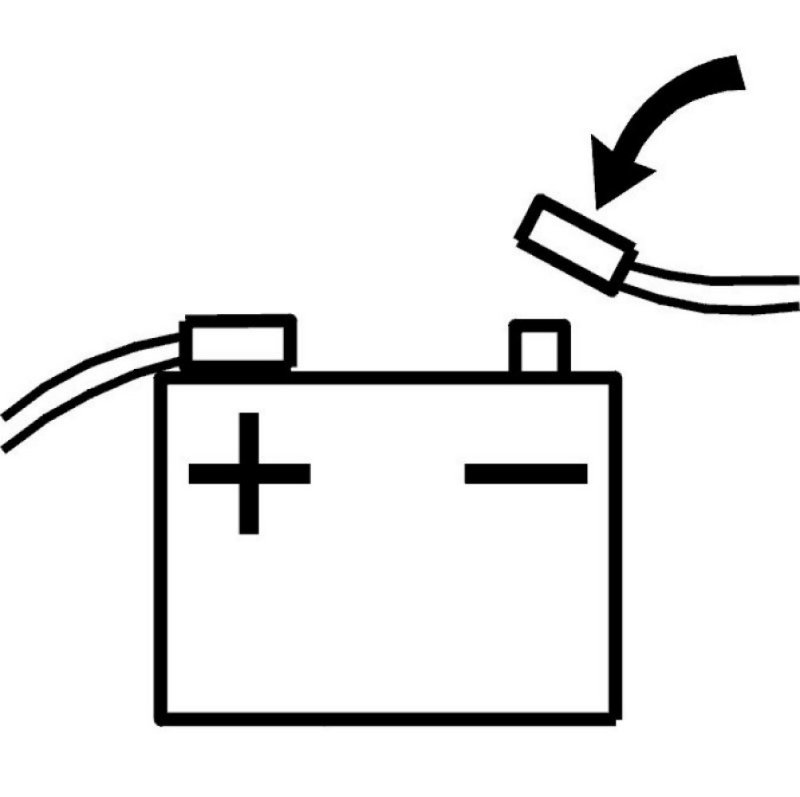

- Connect the battery negative lead.

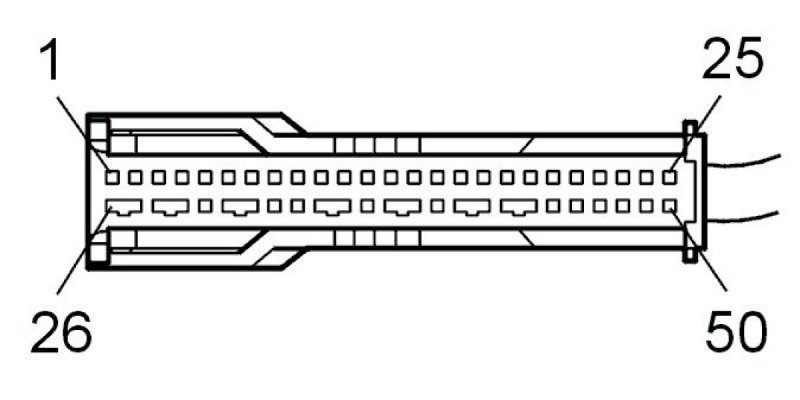

Connect a voltmeter between ground and SRS control module connector #40.
The voltmeter should read approximately 10 V.
OK - Fault-tracing information
Not OK - Checking the resistance in the cable
-------------------------------------------------
Fault-tracing information
This result indicates that there are no faults in the system.
-------------------------------------------------
Checking the resistance in the cable
- Ignition off.
- Disconnect the central locking system control module from the connector,.
Caution! Avoid touching the control module terminal pins. There is a risk of static discharge which may damage the control module.

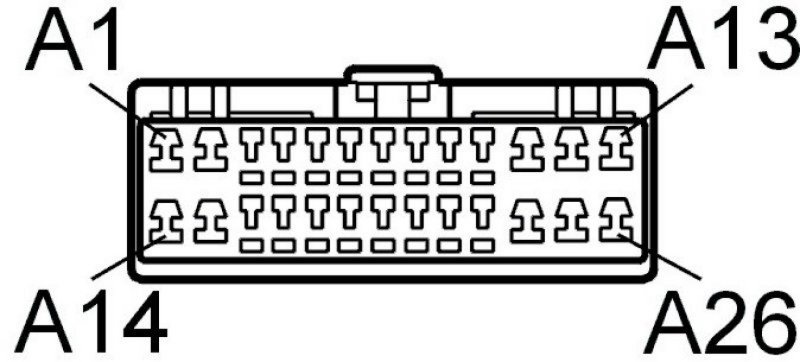

Connect an ohmmeter between SRS control module connector #40 and central locking system connector #A10. Check for an open-circuit according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
The ohmmeter should read approximately 0 ohms.
OK - Check the central locking system cable for a short-circuit to ground
Not OK - Replacing the component
-------------------------------------------------
Replacing the component
There is an open-circuit in the cable between central locking system connector #A10 and SRS control module connector #40 if the ohmmeter displays an infinite value.
- Check the cable and repair or replace the SRS cable harness.
Continue - Verification
-------------------------------------------------
Check the central locking system cable for a short-circuit to ground
- Ignition off.
- Disconnect the battery negative lead.
- Connect the SRS control module connector.
- The connector for the central locking system control module must be disconnected.
Connect an ohmmeter between ground and central locking system connector #10A.
The ohmmeter should read approximately 1.2 Mohms.
OK - Replacing the component
Not OK - Checking the cable between the central locking system control module and the SRS control module
-------------------------------------------------
Replacing the component
- Replace the central locking system control module.
Continue - Verification
-------------------------------------------------
Checking the cable between the central locking system control module and the SRS control module
- Ignition off.
- Disconnect the control module.
Caution! Avoid touching the control module terminal pins. There is a risk of static discharge which may damage the control module.
Connect an ohmmeter between ground and SRS control module connector #40.
The ohmmeter should read infinite resistance.
OK - Replacing the component
Not OK - Replacing the component
-------------------------------------------------
Replacing the component
No short-circuit to ground in the cable between SRS control module connector #40 and central locking control module connector #10A.
- Replace the SRS control module according to SRS control module Service and Repair.
Continue - Verification
-------------------------------------------------
Replacing the component
There is a short-circuit to ground in the cable between the SRS control module connector and the central locking control module if the ohmmeter reads approximately 0 ohms.
- Check the cable and repair or replace the SRS cable harness.
Continue - Verification
-------------------------------------------------
Verification
Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off.
- Reinstall the connectors, components etc.
- Connect the battery negative lead.
Lock the car.
Try opening the car using a smart tool to simulate a collision.
Does the unlocking function?
Yes - Fault has been remedied
No - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should be diagnosed and remedied. Since this is not the case the fault-tracing process has failed.
Complete the fault-tracing for those fault or try again.
Do you want to terminate fault-tracing at this time?
Yes - Exit fault-tracing
No - Attempt New Test
------------------------
Attempt New Test - Checking the connector for the SRS control module
-------------------------------------------------
