Reset Procedure

Resetting SRS contact reel

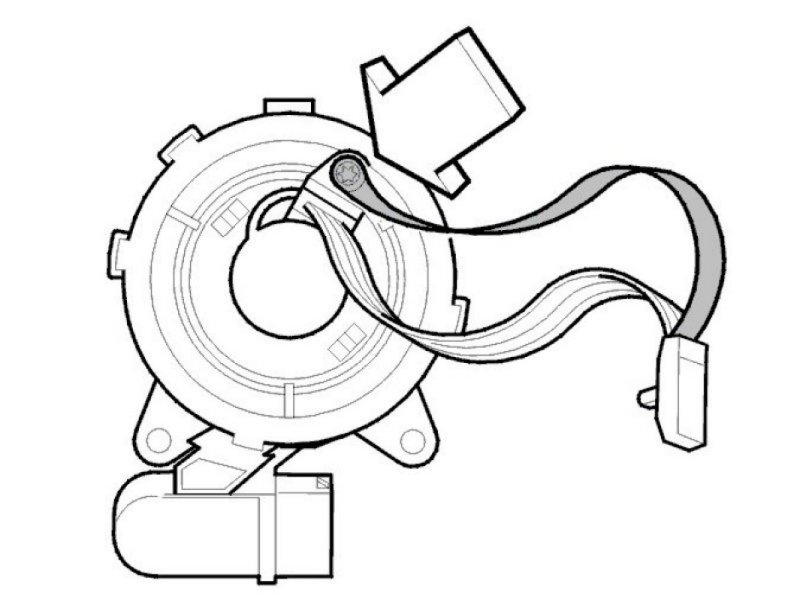

Remove screw




1 Torx 20 screw.

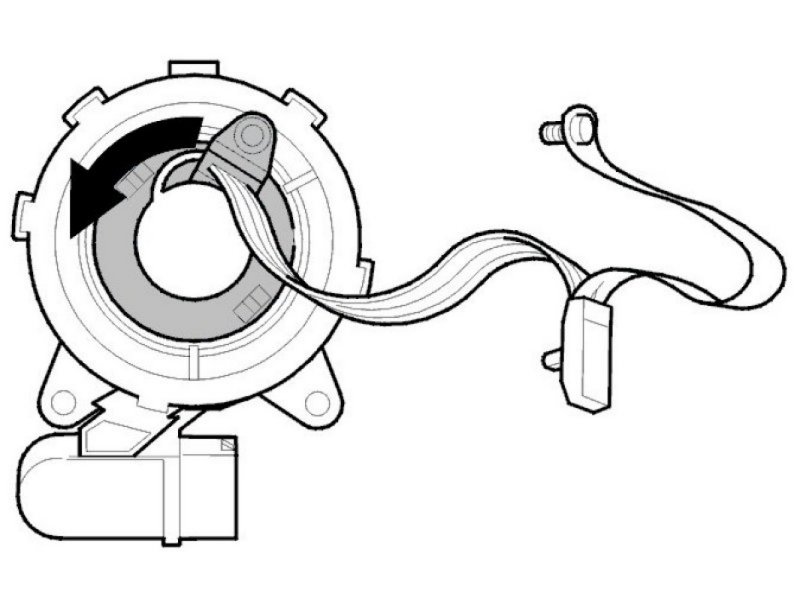

Turn to the left




- Turn the contact reel as far as possible to the left.

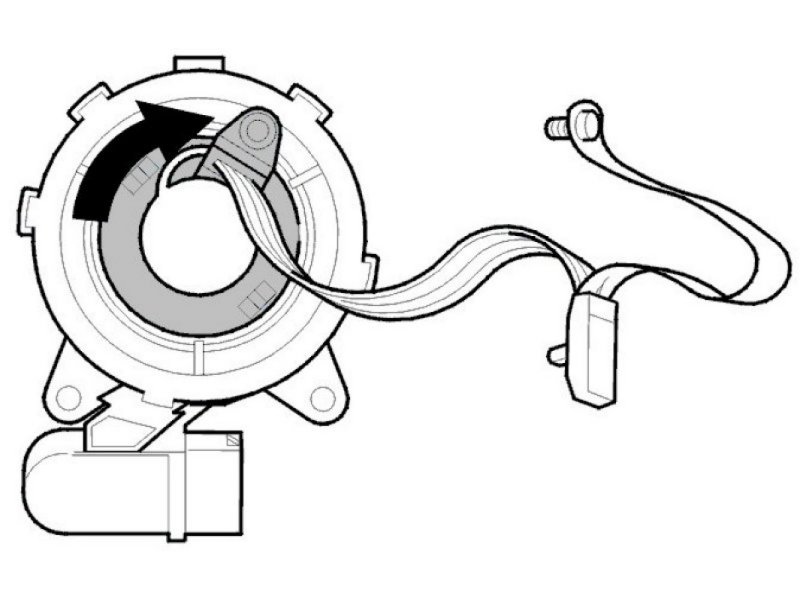

Turn to the right




- Turn contact reel to the right approximately 2 + ¾ turns to the screw hole.
The screw hole should be over the lock position - "1 o'clock" as illustrated.

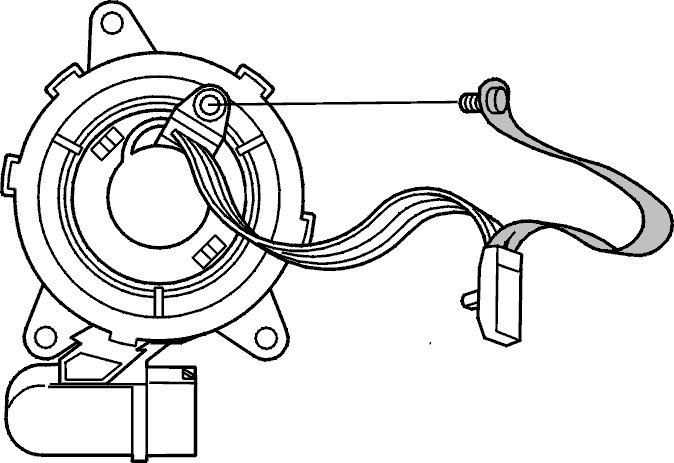

Install screw




- Install screw in contact reel lock position.
The contact reel is now reset and locked (secured).
