Procedures

CDB. Zeroing SRS Contact Reel

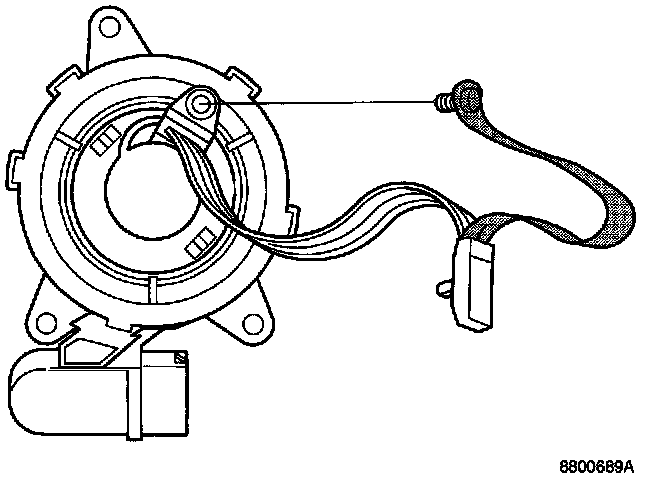

CDB1. Remove screw





1 Torx 20 screw.

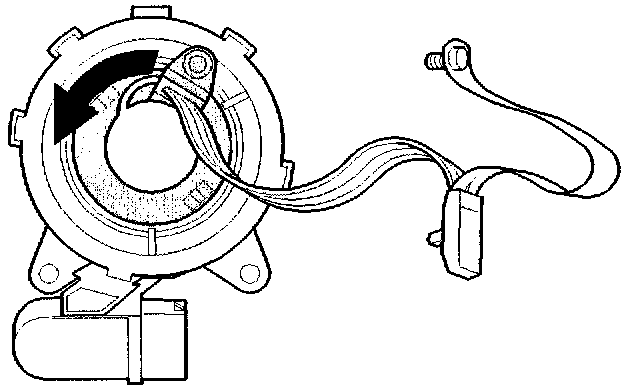

CDB2. Turn to the left






Turn the contact reel as far as possible to the left.


CDB3. Turn to the right






Turn contact reel to the right approximately 2 + 3/4 turns to the screw hole. The screw hole should be over the lock position - 1 o'clock as illustrated.

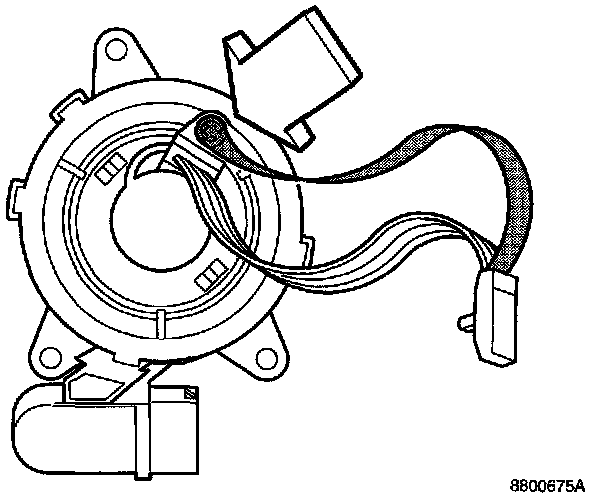

CDB4. Install screw





Install screw in contact reel lock position. The contact reel is now zeroed and locked (secured).
