Convertible Top Control Module: Service and Repair

Replacing the control module

Removing the control module

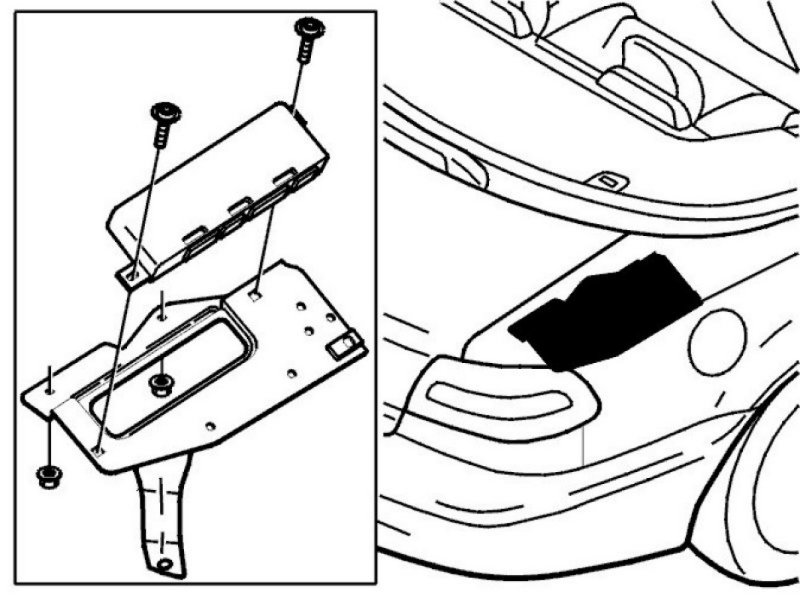

The control module for the convertible top is located in the cargo compartment on the right-hand side.
Ignition off.
Make a note of the anti-theft radio code.
Disconnect the battery negative lead.

Remove:
- the right side panel in the cargo compartment
- the 3 nuts for the control module bracket
- the 2 tie straps for the control module wiring
- the 4 connectors for the control module.

Hint: It is easiest if the two green connectors are disconnected first.

- the 2 screws securing the control module to the bracket.
Replace the control module.

Installing the control module
Install in reverse order.
