2. Checking Oil Quality

Checking Oil Quality

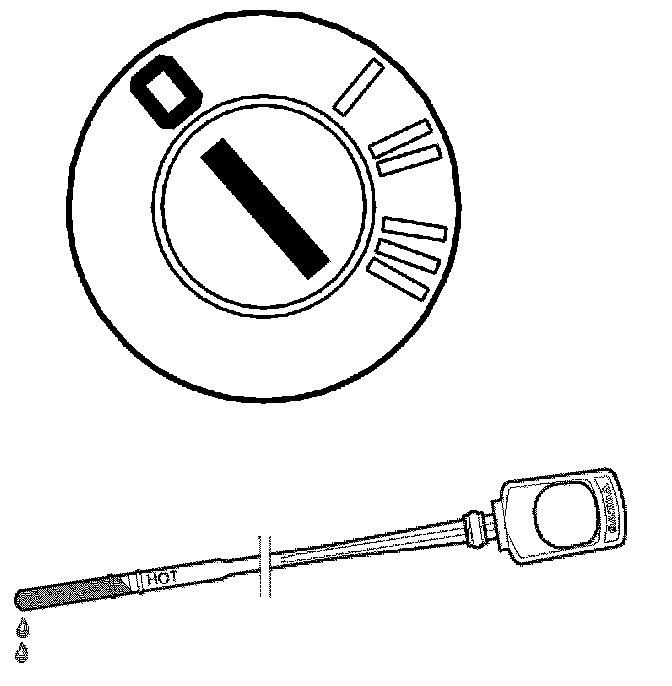

- Ignition off.

Check the oil by taking a sample with the dipstick.

Alternatives:
1. Oil is OK.
2. Oil is discolored or has a burnt smell.
3. Oil contaminated with water (grayish coloring).

Select an alternative that describes the situation.

1: Refer to Trouble Code Descriptions. Diagnostic Trouble Code Descriptions
2: Refer to Replacing. 3. Replacing Oil
3: Refer to Replacing Component. 5. Replacing Component
