Removal and Replacement

Manifold absolute pressure (MAP) sensor, replacing

Replacing the pressure sensor

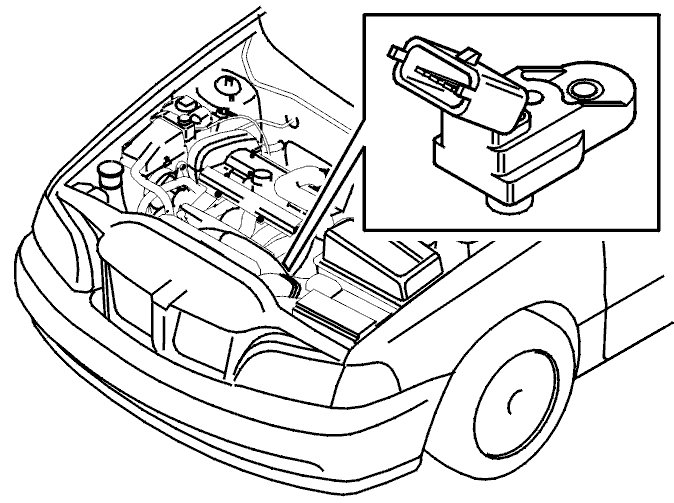

Removing the charge air pressure sensor




- Disconnect the sensor connectors
- Remove the sensor from the intake manifold.

Installing the charge air pressure sensor




- Install a new sensor
- Connect the sensor connectors.
