Replacing the EVAP Canister Shut-Off Valve

Replacing the EVAP canister shut-off valve

Note! Click here if you are working on the S80 Replacing the carbon filter container Carbon Filter Container, Replacing.

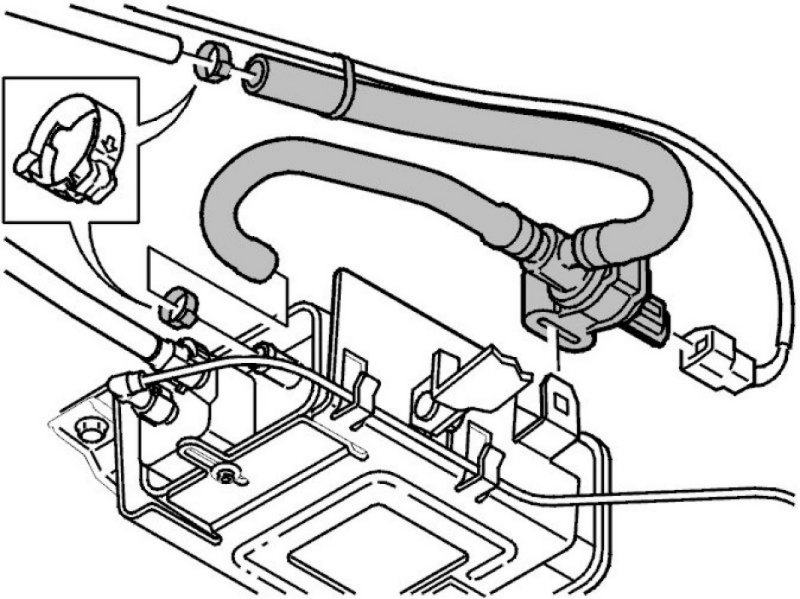

Removing the EVAP canister shut-off valve








- Disconnect the connector
- Remove the clamps (2) at the EVAP canister and rear axle joint, and one tie strap.

Removing the clamp:
- squeeze the clamp with a pipe wrench. Hold in place
- pry apart with a small screwdriver.

Note! These are reusable.

- Disconnect hoses.
- Remove the rubber mounting from the bracket.

Installing the EVAP canister shut-off valve
In reverse order.

Installing the clamp:
- squeeze the clamp with a pipe wrench until it locks.

Note! Use a new screw clip at the EVAP canister. See replacement parts catalogue. Use a new tie strap. Reuse the clamp at the rear axle joint.
