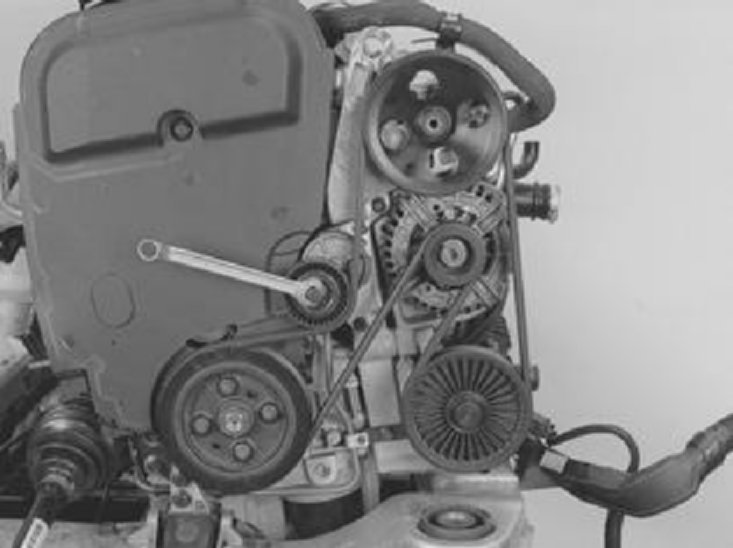

Remove the intake manifold
Remove the intake manifold according to operation Replacing intake manifold, refer to Engine, Intake Manifold.

Remove





- the hose from the flame trap
- the intake manifold bracket
- the two screws for the flame trap
- the oil trap.

Check that the flame trap seal surfaces are clean.

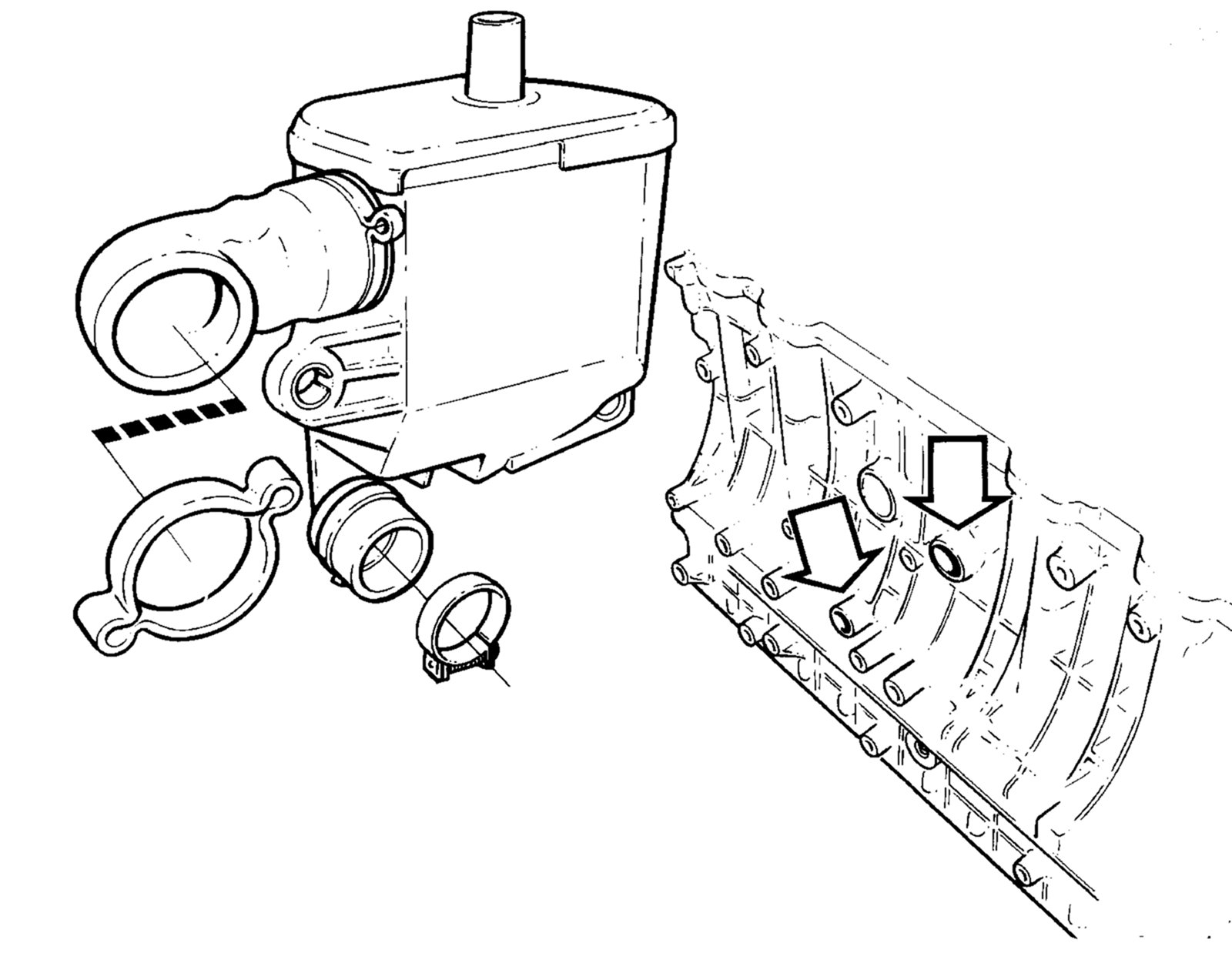

Install the flame trap
- Connect the two flame trap hoses to the cylinder block connecting sleeves.
- Install a new hose clamp for the upper hose. Tighten the lower clamp.
- Install and tighten the screws to 20 Nm (15 ft. lbs.)
- Install the intake manifold bracket loosely with the lower screw.
- Install the intake manifold.

Install the intake manifold.
- Install the intake manifold according to operation Replacing intake manifold, refer to Engine, Intake Manifold.

Check
- Check the engine function by test driving the car.
- Wipe clean the steering wheel and gear selector lever.
