Leak Detection Pump: Service and Repair

Leak diagnostic pump, replacing

Information

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Removing the carbon filter container
Remove the carbon filter container. See Carbon filter container, replacing Carbon Filter Container, Replacing.

Removing the leak diagnostic pump

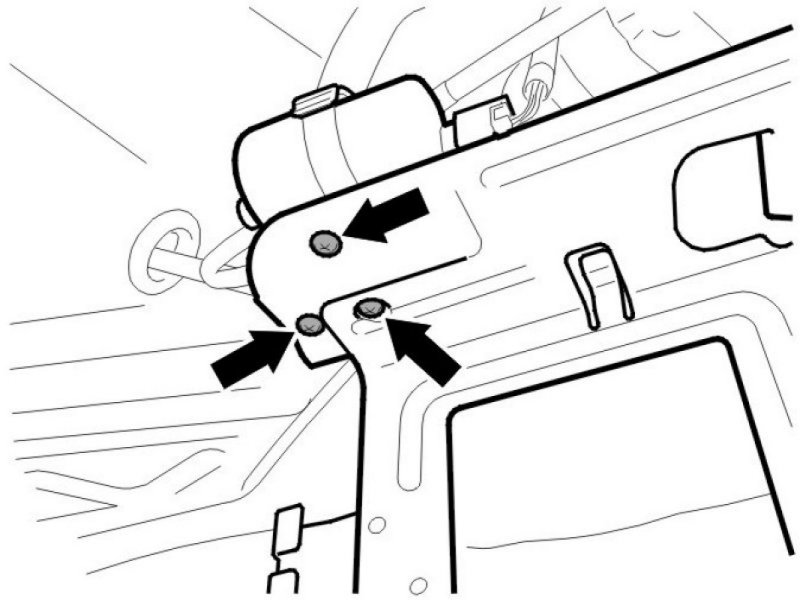

Remove the 3 screws.

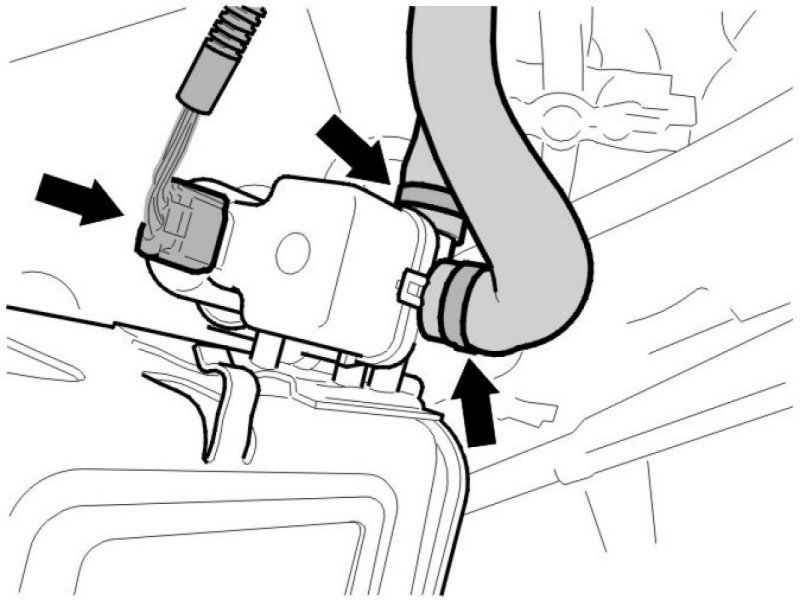

Remove:
- the connector
- the two hoses.

Installing the leak diagnostic pump

Install:
- the connector
- the two hoses
- the three screws.

Note! Use new hose clamps.

Installing the carbon filter container
Install the carbon filter container. See Carbon filter container, replacing Carbon Filter Container, Replacing.
