Evaporative Emission System (EVAP) Valve, Replacing

Evaporative emission system (EVAP) valve, replacing

Information

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparation
Disconnect the hose for the turbocharger (TC).

Removing the evaporative emission system (EVAP) valve




Disconnect the evaporative emission system (EVAP) valve connector.
Remove the valve from the bracket on the cylinder block.

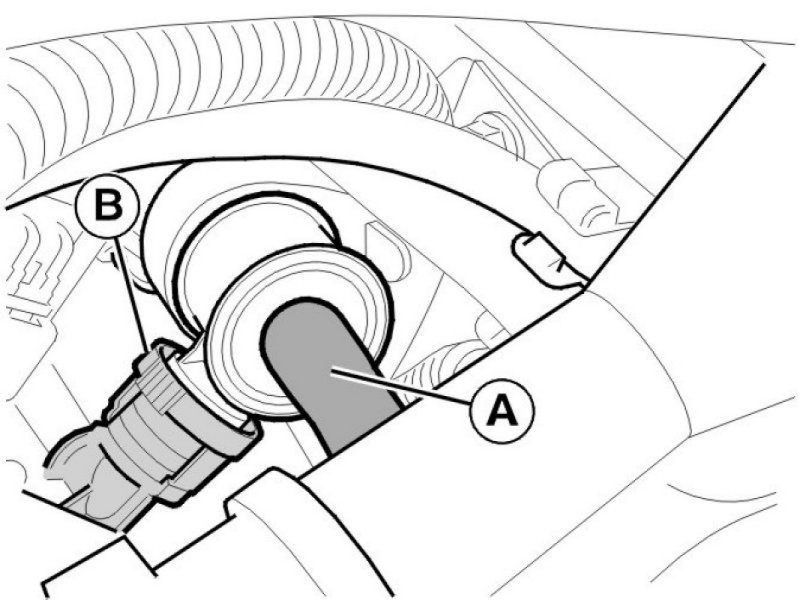

Pull the hose (A) off the valve.
Hose union (B), press in the lock and pull straight out.

Installing the evaporative emission system (EVAP) valve

Install:
- the evaporative emission system (EVAP) valve
- the hoses
- The evaporative emission system (EVAP) valve on the bracket on the cylinder block.
Connect the evaporative emission system (EVAP) valve connector.

Finishing
Install the hose on the turbocharger (TC).
