Outside Temperature Sensor, Replacing




OUTSIDE TEMPERATURE SENSOR, REPLACING

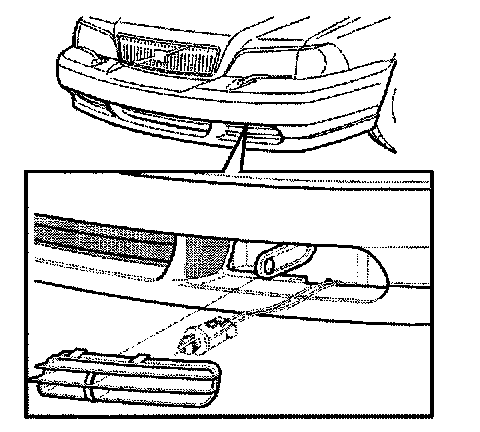

The temperature sensor is mounted on the spoiler under the front bumper.

Disconnect the sensor from its mounting.

Disconnect the connector and replace the sensor.

Assemble in reverse order.
