With 21 Fuses

INTEGRATED RELAY/FUSEBOX, ENGINE COMPARTMENT

Removal

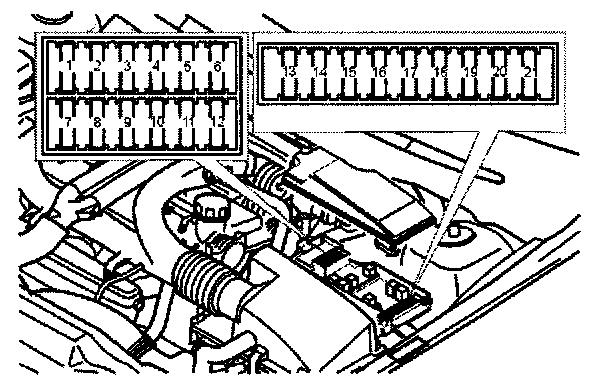

Location of fuse, 11B
For the location of the fuses, see:
- Wiring diagram for relevant model year
- Decals at respective integrated relay/fusebox in the car
- Pocket data book
- Owner's Manual.

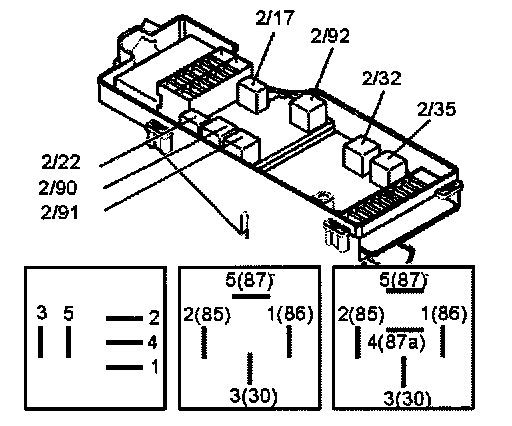

Relay location
For the location of the relays, see:
- Wring diagram for relevant model year
- Decals at respective integrated relay/fusebox in the car
- Pocket data book
- Owner's Manual.




Main fuse

Replacement
Remove the cover
Remove the nut
Remove the fuse.

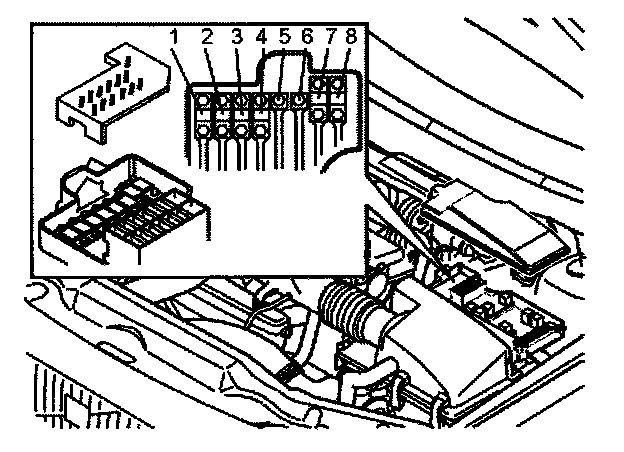

Main fuse location, 11A
See the wiring diagram for the relevant model year,
Decals at respective integrated relay/fusebox in the car
Pocket data book,
Owner's Manual.

Installation

Fuse and relay
In reverse order.
