Intake Air Temperature Sensor, Replacing

INTAKE AIR TEMPERATURE SENSOR (IAT SENSOR), REPLACING

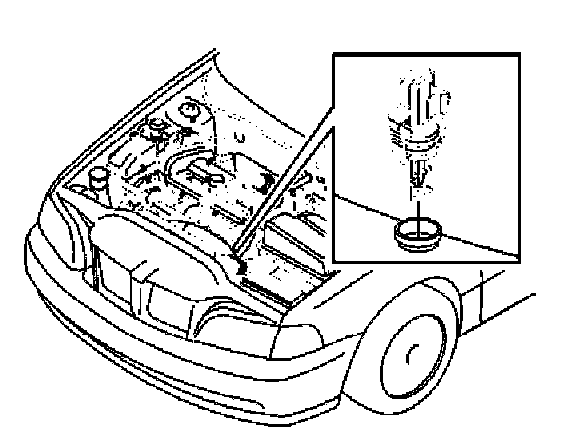

Removing the temperature sensor
- Disconnect the sensor connectors.

Note! Do this only by hand.

- Remove the sensor from the intake manifold.

Installing the temperature sensor
- Install a new sensor
- Connect the sensor connectors.
