Ignition Coils, Replacing

REPLACING IGNITION COILS

Removing ignition coils
Remove

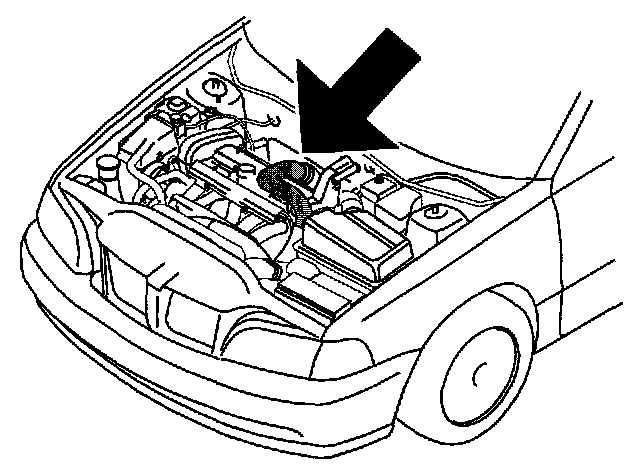

- the charge air pipe over the engine. Seal the openings.





- the upper timing belt cover

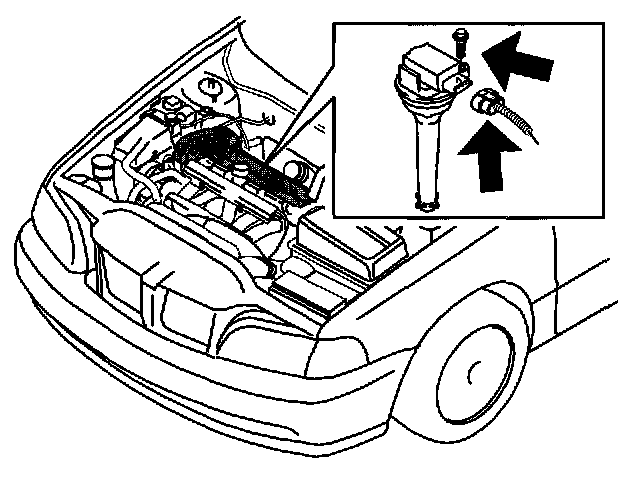

- the cover over the ignition coils Disconnect the ignition coil connector
- the mounting screw. Pull up the coil.

Installing ignition coils





Install the new coil.
Align the coil and press it down. Install the screw. Tighten to 1O Nm.
Press in the connector until a clicking sound is heard.
Install the cover over the ignition coil.
Install the upper timing belt cover.





Remove the seals from the charge air pipe. Reinstall the charge air pipe over the engine.
