Cruise Control Lever/Turn Signal Indicator Switch, Replacing

REPLACING CRUISE CONTROL LEVER/TURN SIGNAL INDICATOR SWITCH




Removal

Position the steering wheel straight ahead.
Key out.
Pull out steering wheel as far as possible and lower steering column.
Undo clips on panel (1).
Remove:
- upper steering wheel cover (2), by disconnecting it at the steering wheel, lifting it and pulling it outwards.
- screws (3).
- lower steering wheel cover.
- cruise control/turn signal indicator switch and disconnect connector.




Installation

Note! The cruise controliturn signal switch should be in the neutral position during installation. The pin that controls automatic cancel may otherwise be broken off.

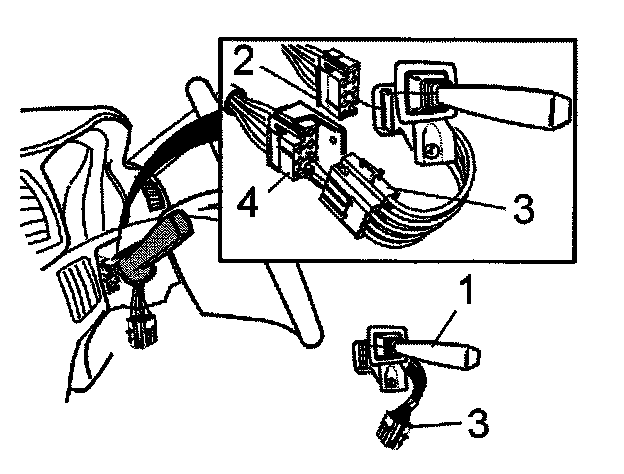

Connect 8-pin connector (2).
Install:
- the new cruise control/turn signal indicator switch Connect the 6-pin connector (3) from the lever to the connector (4), on the left-hand side of the steering column.
Install:
- steering wheel covers and panel.
Function test the switch.
