Canister Purge (CP) Valve, Replacing

REPLACING THE CANISTER PURGE (CP) VALVE




Removing the canister purge (CP) valve

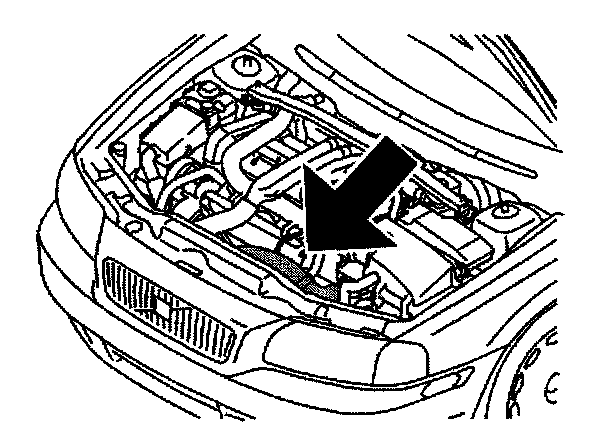

Remove the intake manifold between the front cover plate and the air cleaner (ACL) housing.

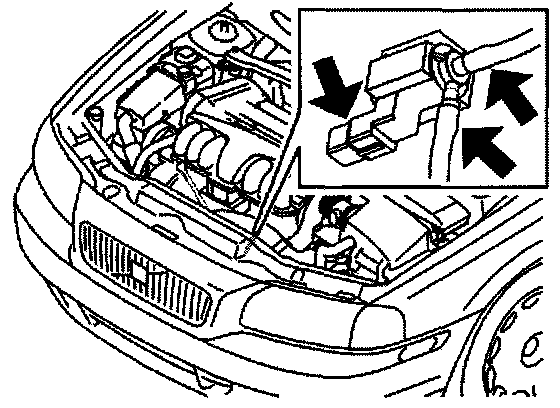

Disconnect the canister purge (CP) valve connectors.
Pull off the valve from the bracket on the fan shroud.
Mark up and pull off the hoses from the valve.





Installing the canister purge (CP) valve
Install
- the new canister purge (CP) valve
- the hoses according to the markings
- the canister purge (CP) valve on the bracket at the fan shroud.
Connect the canister purge (CP) valve connectors




Install the intake manifold between the front cover plate and the air cleaner (ACL) housing.
