Home >> Volvo >> 2000 >> C70 Convertible L5-2.3L Turbo VIN 53 B5234T3 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Description and Operation >> Engine Management System ME7.0 >> Functions/Components Controlled

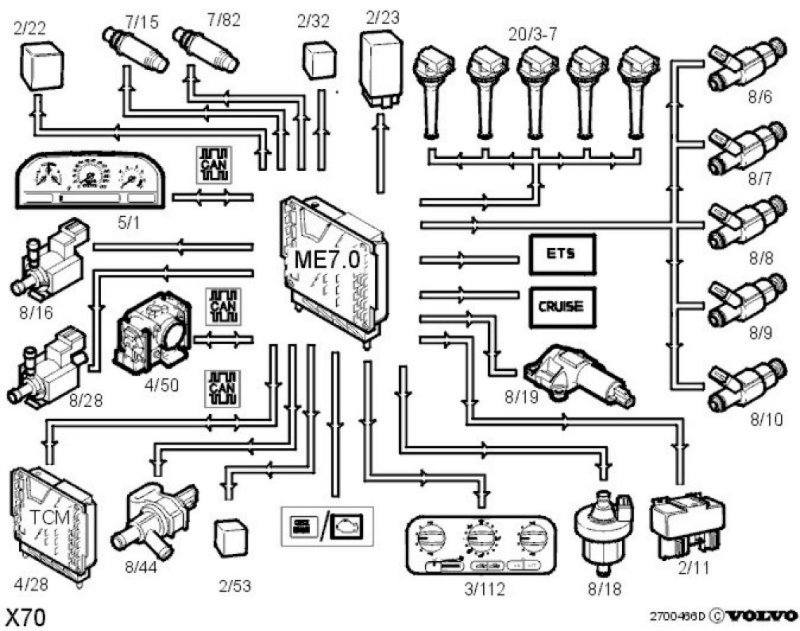

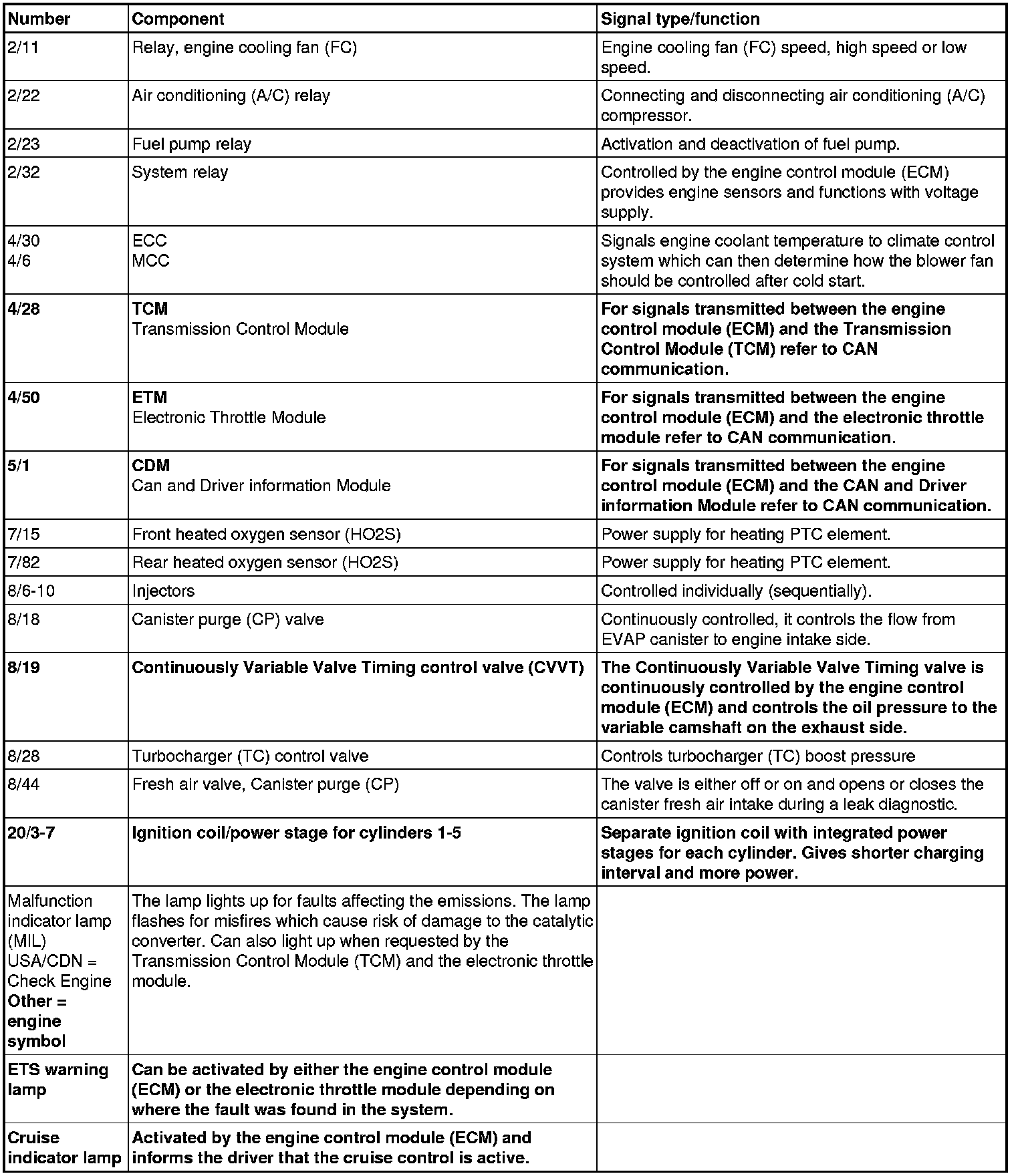

Functions/Components Controlled






Functions/components controlled





New sensors and functions which are different to previously known principles are marked with bold text .
