Engine temperature sensor

Removal

Engine temperature sensor, 5-cylinder




- Jack up the car.
- Remove protection cover from under engine.
- Drain the coolant as described in Replacing radiator/charge air cooler (CAC) Service and Repair.
- Lower the car.
- Release coolant hose from thermostat housing using pliers.
- Remove thermostat housing.

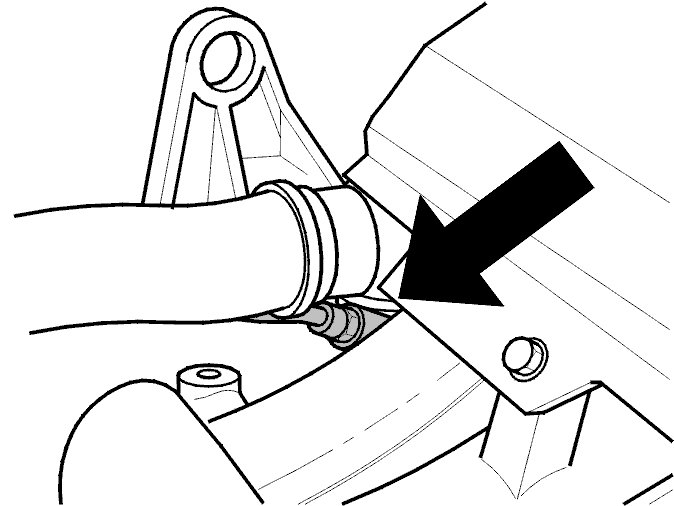

- Remove sensor.

Engine temperature sensor, 6-cylinder




- Jack up the car.
- Remove protection cover from under engine.
- Drain the coolant as described in Radiator / charge air cooler (CAC), replacement .
- Lower the car.
- Loosen oil reservoir for servo pump as described in.
- Remove coolant reservoir and put it to one side.

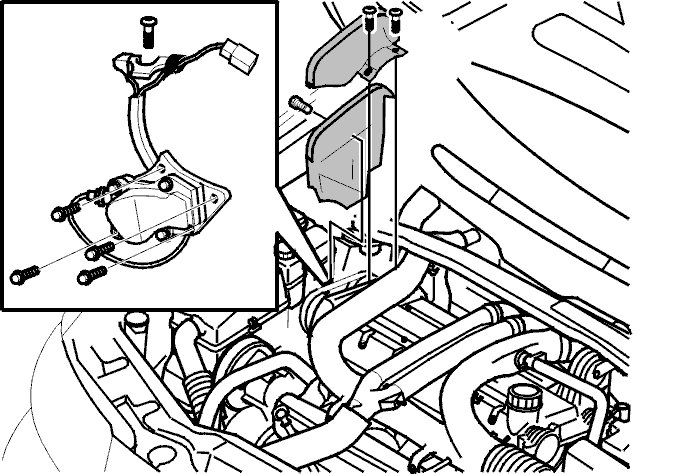

- Remove screws and outer/upper timing-gear casing.
- Remove screws and wire channel.
- Disconnect connector.
- Remove 4 screws and thermostat housing.
- Remove sensor and wires.

Installation

Engine temperature sensor, 6-cylinder
- Install thermostat housing sensor.
- Position wires in slot on thermostat housing.

Note! The white marks should be positioned in lower opening of slot, from underneath.

- Position gasket on thermostat housing correctly and install thermostat housing using two of the screws.
- Position thermostat housing correctly and tighten the four screws.
- Position wire channel correctly and position wire in channel.
- Tighten screw on wire channel.
- Connect the connector.
- Install outer/upper timing-gear casing.
- Install coolant reservoir.
- Install oil reservoir for servo pump as described in.

Follow-on work, 6-cylinder
- Fill up coolant.
- Warm the engine until the thermostat opens.
Switch engine off and check the level. Re-fill if necessary.
- Check for leaks.
- Check in VIDA vehicle communication (read-out of parameter values), for current engine system, that the engine temperature shown appears correct.

Engine temperature sensor, 5-cylinder
Install in reverse order.

Follow-on work, 5-cylinder
- Fill up coolant.
- Warm the engine until the thermostat opens.
Switch engine off and check the level. Re-fill if necessary.
- Check for leaks.
- Check in VIDA vehicle communication (read-out of parameter values), for current engine system, that the engine temperature shown appears correct.
