Removal and Replacement

Intake Air Temperature Sensor (IAT Sensor), replacing

Replacing the temperature sensor

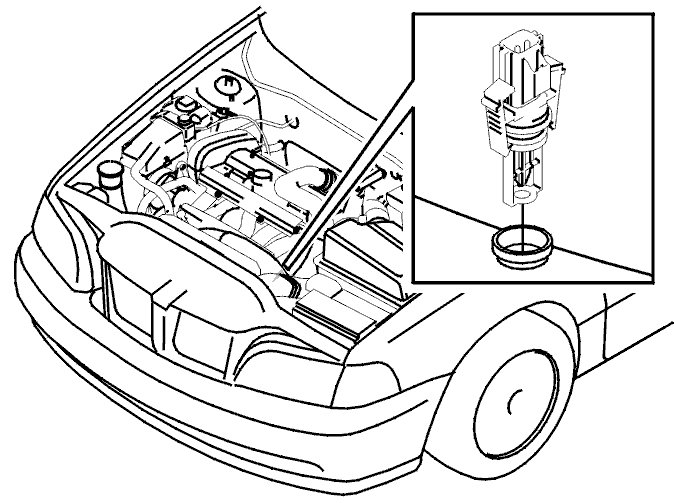

Removing the temperature sensor




- Disconnect the sensor connectors.

Note! Do this only by hand.

- Remove the sensor from the intake manifold.

Installing the temperature sensor




- Install a new sensor
- Connect the sensor connectors.
