Fusebox, Passenger Compartment, Replacing

Fusebox, passenger compartment, replacing

Removal

Fuse




- Remove the cover
- Remove the relay / fuse.

Fuse location, 11C




For the location of the fuses, see:
1. Wiring diagram for relevant model year
2. Decals at both the integrated relay box and fusebox in the car
3. Pocket data book
4. Owner's Manual.

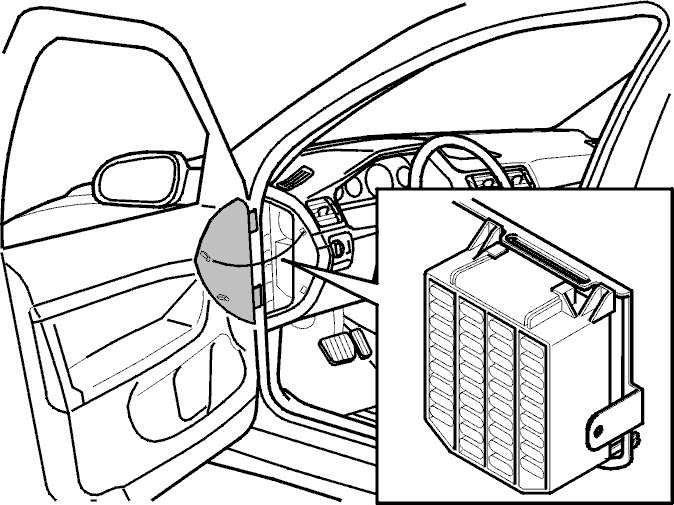

Fusebox




- Remove the cover

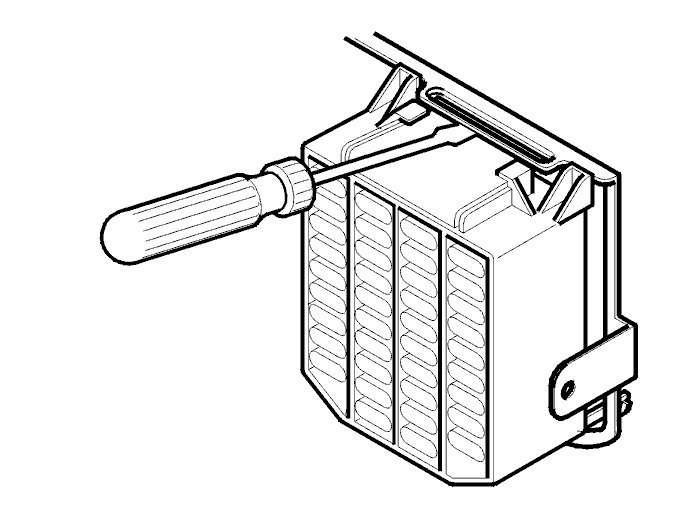

- Remove the fusebox by pressing up the catch using a screwdriver and releasing the upper edge.

Installation

Fusebox
- Insert the lower catch. Press the fusebox into place
- Install sun roof.

Fuse
In reverse order.

Other information
For the location of other relay and fuse boxes, see
