Courtesy Lamp: Service and Repair

Rear Reading Lamp Bulb Convertible, Replacement






Replacing bulb

Ignition off.

Remove:

- rear seat. Rear seats Section 8(82-86, 88) Interior trim, exterior C70 Convertible.
- panel roll-over bars. Parcel shelf Section 8(82- 86, 88), Interior, exterior C70 Convertible.
- rear side panel. Panels Section 8(82-86, 88) Interior trim, exterior C70 Convertible.

Replacing bulbs:

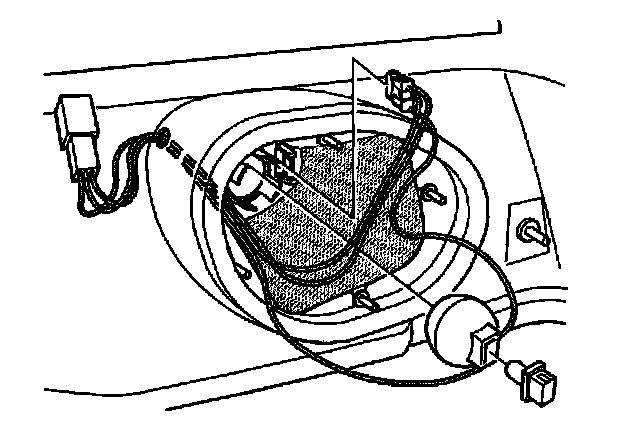

Press the bulb holder out of the panel.

Replace the bulb.

Install in reverse order.

* Test the bulb.
