Removal and Replacement

High level stop lamp, replacement

Removal

Note! The stop lamp can only be replaced as a complete unit.

Preparation

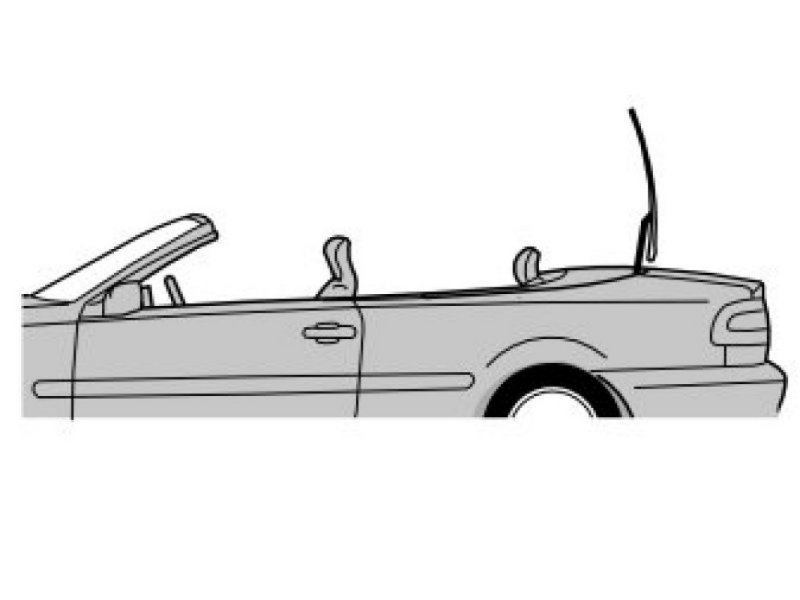

- Set the convertible top to the position illustrated
- Ignition off.

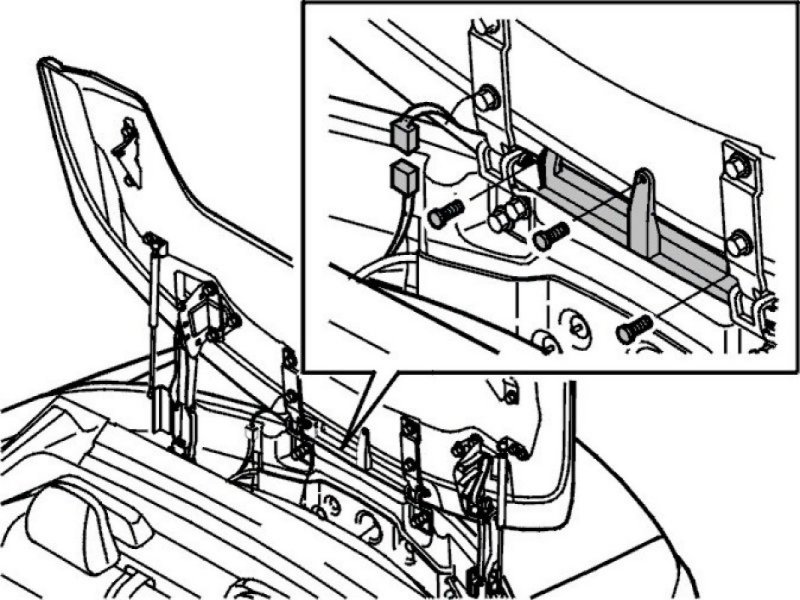

Removing the stop lamp insert




- Disconnect the connector and cable clip
- Remove the three screws
- Carefully remove the rubber strip from the stop lamp insert
- Angle out and remove the stop lamp insert.

Installation

Installing the stop lamp insert
- Install masking tape on the lower edge of the stop lamp insert lens to prevent spilling adhesive
- Align the stop lamp
- Install the three screws
- Bond the weatherstrip to the stop lamp insert. Use rapid bonding adhesive
- Connect the connector and the clips.

Finishing
Replace the convertible top.
Remove the masking tape.
Check that the stop lamp functions.
