Outside Temperature Display Sensor: Service and Repair

DDQ1 Replacing:

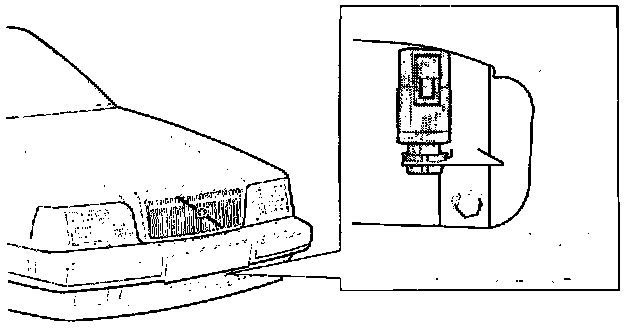

The temperature is sensor located under the front bumper. It has a gray connector.
- Disconnect the sensor from its mounting.
- Disconnect and replace temperature sensor.
- Reinstall in reverse order.

Lubricate connector with grease P/N 1161417-9.
